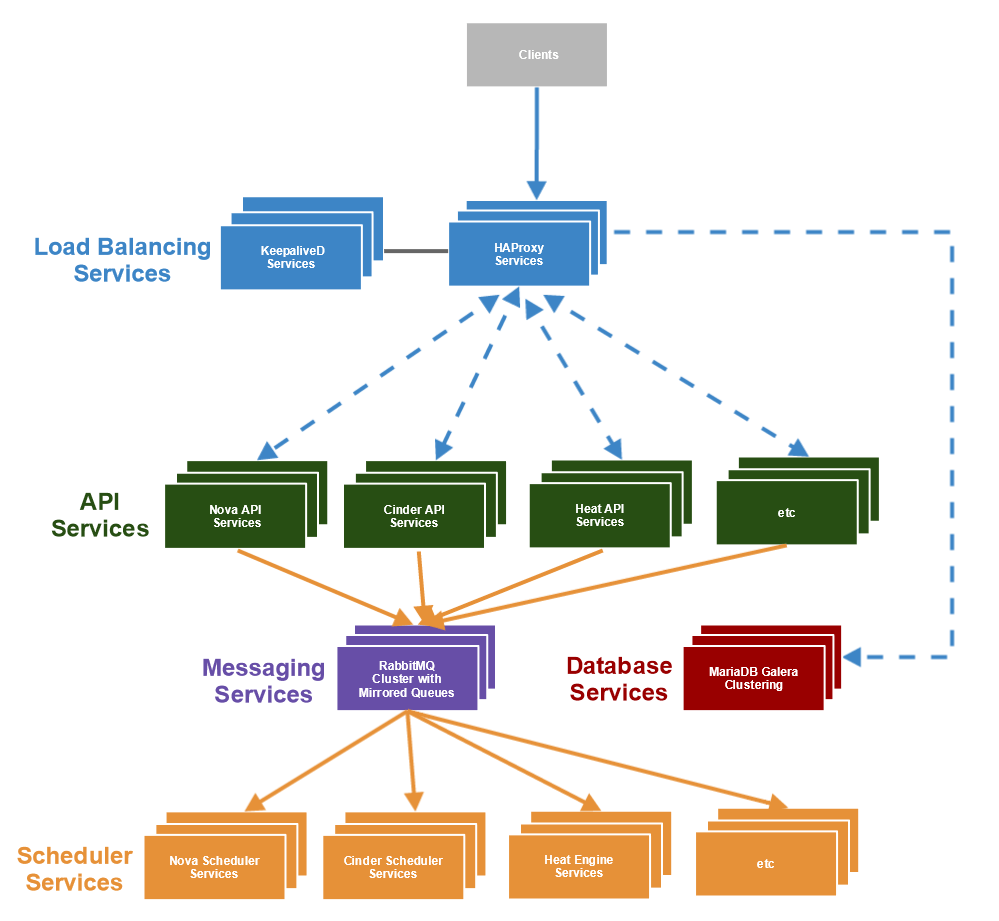

kolla项目是为了容器化openstack，目标是做到100个节点的开箱即用，所有的组件的HA都具备。kolla是一个革命性的项目，我们以前积累的安装部署经验，全部都报废。使用kolla可以快速部署可扩展，可靠的生产就绪的openstack环境。本文介绍如何使用kolla安装部署OpenStack云平台。
基本环境
操作系统：CentOS Linux release 7.2.1511 (Core)
内核版本：3.10.0-327.el7.x86_64
docker版本：Docker version 1.10.3, build cb079f6-unsupported
安装docker
参照：安装 Docker 和 Docker Compose
部署kolla
yum install epel-release -y
yum install python-devel libffi-devel openssl-devel gcc python-pip -y
pip install -U pip
# Create the drop-in unit directory for docker.service
mkdir -p /etc/systemd/system/docker.service.d
# Create the drop-in unit file
tee /etc/systemd/system/docker.service.d/kolla.conf <<-'EOF'
[Service]
MountFlags=shared
EOF
重启docker
systemctl daemon-reload
systemctl restart docker
yum install python-docker-py -y
or
pip install -U docker-py
ntpdate asia.pool.ntp.org
systemctl stop libvirtd.service
systemctl disable libvirtd.service
这里需要注意的是如果安装stable版的kolla需要Ansible < 2.0（1.9.4），master版需要Ansible > 2.0。默认yum安装ansible版本>2.0，因为我要安装stable/newton版，所有不指定安装版本。
pip install -U ansible
or
pip install -i http://pypi.douban.com/simple/ ansible --trusted-host pypi.douban.com
下载源码
yum install git -y
git clone https://github.com/openstack/kolla -b stable/newton
安装依赖
pip install -r kolla/requirements.txt -r kolla/test-requirements.txt
or
pip install -i http://pypi.douban.com/simple/ -r kolla/requirements.txt -r kolla/test-requirements.txt --trusted-host pypi.douban.com
源码安装
pip install kolla/
or
pip install -i http://pypi.douban.com/simple/ kolla/ --trusted-host pypi.douban.com
安装完成后，更新docker镜像中的pip源和yum源：
/usr/share/kolla/docker/base/Dockerfile.j2:81
# Set up aliyun mirrors
RUN yum install wget vim -y \
&& wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo \
&& yum clean all
# Set up pip and use douban source
COPY get-pip.py /tmp
RUN mkdir ~/.pip \
&& > ~/.pip/pip.conf \
&& echo "[global]" > ~/.pip/pip.conf \
&& echo "index-url = http://pypi.douban.com/simple" >> ~/.pip/pip.conf \
&& echo "trusted-host = pypi.douban.com" >> ~/.pip/pip.conf \
&& python /tmp/get-pip.py \
&& rm -f /tmp/get-pip.py \
&& yum install python-devel mysql-devel gcc openssl libssl-dev libffi-devel python-devel openssl-devel -y \
&& pip --no-cache-dir install pytz
在{ { macros.install_packages(base_centos_yum_repo_packages | customizable(“yum_centos_repo_packages”)) } }后添加
RUN sed -i ' s/\#baseurl=http\:\/\/download.fedoraproject.org\/pub\/epel\/7/baseurl=http\:\/\/mirrors.aliyun.com\/epel\/7/' /etc/yum.repos.d/epel.repo \
&& sed -i '/mirrorlist/'d /etc/yum.repos.d/epel.repo \
&& sed -i '/failovermethod/'d /etc/yum.repos.d/epel.repo \
&& sed -i ' s/gpgcheck=1/gpgcheck=0/' /etc/yum.repos.d/epel.repo \
&& sed -i ' s/mirror.centos.org/mirrors.aliyun.com/' /etc/yum.repos.d/CentOS-OpenStack-newton.repo \
&& sed -i ' s/mirror.centos.org/mirrors.aliyun.com/' /etc/yum.repos.d/CentOS-Ceph-Jewel.repo \
&& sed -i ' s/mirror.centos.org/mirrors.aliyun.com/' /etc/yum.repos.d/CentOS-QEMU-EV.repo \
&& rm -rf /etc/yum.repos.d/epel-testing.repo
pip install -U tox
pip install -i http://pypi.douban.com/simple/ -U tox --trusted-host pypi.douban.com
cd kolla/
tox -e genconfig
cp -rv etc/kolla /etc/
[root@xiexianbin_cn kolla]# tox -e genconfig
genconfig develop-inst-noop: /root/kolla
genconfig installed: appdirs==1.4.0,Babel==2.3.4,backports.ssl-match-hostname==3.5.0.1,bandit==1.1.0,bashate==0.5.1,beautifulsoup4==4.5.1,chardet==2.3.0,cliff==2.2.0,cmd2==0.6.9,debtcollector==1.9.0,doc8==0.7.0,docker-py==1.7.2,docutils==0.12,extras==1.0.0,fixtures==3.0.0,flake8==2.5.5,funcsigs==1.0.2,functools32==3.2.3.post2,futures==3.0.5,gitdb==0.6.4,gitdb2==2.0.0,GitPython==2.1.0,graphviz==0.5.1,hacking==0.11.0,iso8601==0.1.11,Jinja2==2.8,jsonpatch==1.14,jsonpointer==1.10,jsonschema==2.5.1,keystoneauth1==2.15.0,linecache2==1.0.0,MarkupSafe==0.23,mccabe==0.2.1,mock==2.0.0,monotonic==1.2,mox3==0.18.0,msgpack-python==0.4.8,netaddr==0.7.18,netifaces==0.10.5,openstacksdk==0.9.9,os-client-config==1.22.0,osc-lib==1.2.0,oslo.config==3.19.0,oslo.context==2.10.0,oslo.i18n==3.10.0,oslo.log==3.17.0,oslo.serialization==2.14.0,oslo.utils==3.17.0,oslosphinx==4.8.0,oslotest==2.11.0,pbr==1.10.0,pep8==1.5.7,positional==1.1.1,prettytable==0.7.2,pycrypto==2.6.1,pyflakes==0.8.1,Pygments==2.1.3,pyinotify==0.9.6,pyparsing==2.1.10,python-barbicanclient==4.1.0,python-ceilometerclient==2.7.0,python-cinderclient==1.9.0,python-dateutil==2.5.3,python-glanceclient==2.5.0,python-heatclient==1.5.0,python-keystoneclient==3.6.0,python-mimeparse==1.6.0,python-neutronclient==6.0.0,python-novaclient==6.0.0,python-openstackclient==3.3.0,python-subunit==1.2.0,python-swiftclient==3.1.0,pytz==2016.7,PyYAML==3.12,reno==1.8.0,requests==2.11.1,requestsexceptions==1.1.3,restructuredtext-lint==0.17.2,rfc3986==0.4.1,simplejson==3.10.0,six==1.10.0,smmap==0.9.0,smmap2==2.0.1,Sphinx==1.2.3,stevedore==1.18.0,testrepository==0.0.20,testscenarios==0.5.0,testtools==2.2.0,traceback2==1.4.0,unicodecsv==0.14.1,unittest2==1.1.0,warlock==1.2.0,websocket-client==0.37.0,wrapt==1.10.8
genconfig runtests: PYTHONHASHSEED='580917436'
genconfig runtests: commands[0] | oslo-config-generator --config-file etc/oslo-config-generator/kolla-build.conf
WARNING:stevedore.named:Could not load kolla
_________________________________________________________________________ summary _________________________________________________________________________
genconfig: commands succeeded
congratulations :)
[root@xiexianbin_cn kolla]#
如果安装失败，可以在/root/kolla/.pip中创建pip.conf文件
[root@xiexianbin_cn kolla]# cat .pip/pip.conf
[global]
index-url = http://pypi.douban.com/simple
trusted-host = pypi.douban.com
yum install http://mirror.centos.org/centos/7/cloud/x86_64/openstack-newton/centos-release-openstack-newton-1-1.el7.noarch.rpm -y
yum install python-openstackclient python-neutronclient
all-in-one环境中本地仓库不是必须的这里没有配置
编译镜像
kolla-build
or
kolla-build --base centos --type source/binary [--debug]
kolla-build glance
[root@xiexianbin_cn kolla]# kolla-build --base centos --type binary
INFO:kolla.image.build:Found the docker image folder at /usr/share/kolla/docker
INFO:kolla.image.build:Added image base to queue
INFO:kolla.image.build:Attempting to run task BuildTask(base) for the first time
INFO:kolla.image.build.base:Building
INFO:kolla.image.build.base:Step 1 : FROM centos:7
INFO:kolla.image.build.base: ---> 0584b3d2cf6d
INFO:kolla.image.build.base:Step 2 : MAINTAINER Kolla Project (https://launchpad.net/kolla)
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 10abf31f2438
INFO:kolla.image.build.base:Step 3 : LABEL kolla_version "3.0.2"
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 8e994b8a3017
INFO:kolla.image.build.base:Step 4 : ENV KOLLA_BASE_DISTRO centos
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 506f30e14254
INFO:kolla.image.build.base:Step 5 : ENV KOLLA_INSTALL_TYPE binary
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> dc1dfc5b2731
INFO:kolla.image.build.base:Step 6 : ENV KOLLA_INSTALL_METATYPE mixed
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 83657cf144b4
INFO:kolla.image.build.base:Step 7 : COPY kolla_bashrc /tmp/
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 8dc2ba8cd676
INFO:kolla.image.build.base:Step 8 : RUN cat /tmp/kolla_bashrc >> /etc/skel/.bashrc && cat /tmp/kolla_bashrc >> /root/.bashrc
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 84f0400ea68f
INFO:kolla.image.build.base:Step 9 : ENV PS1 "$(tput bold)($(printenv KOLLA_SERVICE_NAME))$(tput sgr0)[$(id -un)@$(hostname -s) $(pwd)]$ "
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 7ccde6df8142
INFO:kolla.image.build.base:Step 10 : RUN if [ $(awk '{match($0, /[0-9]+/,version)}END{print version[0]}' /etc/system-release) != "7" ]; then echo "Only supported 7 release on centos"; false; fi && cat /tmp/kolla_bashrc >> /etc/bashrc
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 40057c7bfc5d
INFO:kolla.image.build.base:Step 11 : COPY elasticsearch.repo /etc/yum.repos.d/elasticsearch.repo
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 76d5c9f76079
INFO:kolla.image.build.base:Step 12 : COPY kibana.yum.repo /etc/yum.repos.d/kibana.yum.repo
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 9fb47b44bc63
INFO:kolla.image.build.base:Step 13 : COPY MariaDB.repo /etc/yum.repos.d/MariaDB.repo
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 3e4f4a5d9284
INFO:kolla.image.build.base:Step 14 : COPY influxdb.repo /etc/yum.repos.d/influxdb.repo
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 850510fffa3c
INFO:kolla.image.build.base:Step 15 : COPY grafana.repo /etc/yum.repos.d/grafana.repo
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 0ed48211f8a8
INFO:kolla.image.build.base:Step 16 : RUN yum -y install http://repo.percona.com/release/7/RPMS/x86_64/percona-release-0.1-3.noarch.rpm && yum clean all
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 6d754e6db74d
INFO:kolla.image.build.base:Step 17 : RUN true && rpm --import http://yum.mariadb.org/RPM-GPG-KEY-MariaDB && rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-Percona && rpm --import https://packages.elastic.co/GPG-KEY-elasticsearch && rpm --import https://repos.influxdata.com/influxdb.key && rpm --import https://packagecloud.io/gpg.key && rpm --import https://grafanarel.s3.amazonaws.com/RPM-GPG-KEY-grafana
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> c9ed2cbf01bb
INFO:kolla.image.build.base:Step 18 : RUN rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 0328261e88d7
INFO:kolla.image.build.base:Step 19 : RUN yum -y install epel-release yum-plugin-priorities centos-release-ceph-jewel centos-release-openstack-newton centos-release-qemu-ev && yum clean all
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 9bdfb6f751e9
INFO:kolla.image.build.base:Step 20 : RUN true && rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-SIG-Cloud && rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-SIG-Storage && rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-SIG-Virtualization && yum clean all
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 25ab40729557
INFO:kolla.image.build.base:Step 21 : RUN yum -y install curl sudo tar which lvm2 scsi-target-utils iproute iscsi-initiator-utils && yum clean all
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 165acaa6246b
INFO:kolla.image.build.base:Step 22 : COPY set_configs.py /usr/local/bin/kolla_set_configs
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> d65f24754d67
INFO:kolla.image.build.base:Step 23 : COPY start.sh /usr/local/bin/kolla_start
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 5de9357397ff
INFO:kolla.image.build.base:Step 24 : COPY sudoers /etc/sudoers
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 120d6d1d459b
INFO:kolla.image.build.base:Step 25 : COPY curlrc /root/.curlrc
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 73735dd23fda
INFO:kolla.image.build.base:Step 26 : RUN touch /usr/local/bin/kolla_extend_start && chmod 755 /usr/local/bin/kolla_start /usr/local/bin/kolla_extend_start /usr/local/bin/kolla_set_configs && chmod 440 /etc/sudoers && groupadd kolla && mkdir -p /var/log/kolla && chown :kolla /var/log/kolla && chmod 2775 /var/log/kolla && rm -f /tmp/kolla_bashrc && curl -sSL https://github.com/Yelp/dumb-init/releases/download/v1.1.3/dumb-init_1.1.3_amd64 -o /usr/local/bin/dumb-init && chmod +x /usr/local/bin/dumb-init
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> 84bfc20969e7
INFO:kolla.image.build.base:Step 27 : CMD kolla_start
INFO:kolla.image.build.base: ---> Using cache
INFO:kolla.image.build.base: ---> a8c7aa050759
INFO:kolla.image.build.base:Successfully built a8c7aa050759
INFO:kolla.image.build.base:Built
INFO:kolla.image.build:Added next task BuildTask(elasticsearch) to queue
INFO:kolla.image.build:Added next task BuildTask(multipathd) to queue
INFO:kolla.image.build:Added next task BuildTask(etcd) to queue
INFO:kolla.image.build:Added next task BuildTask(ceph-base) to queue
INFO:kolla.image.build:Added next task BuildTask(kibana) to queue
INFO:kolla.image.build:Added next task BuildTask(kolla-toolbox) to queue
INFO:kolla.image.build:Added next task BuildTask(cron) to queue
INFO:kolla.image.build:Added next task BuildTask(keepalived) to queue
INFO:kolla.image.build:Added next task BuildTask(grafana) to queue
INFO:kolla.image.build:Added next task BuildTask(openstack-base) to queue
INFO:kolla.image.build:Added next task BuildTask(memcached) to queue
INFO:kolla.image.build:Added next task BuildTask(openvswitch-base) to queue
INFO:kolla.image.build:Added next task BuildTask(mongodb) to queue
INFO:kolla.image.build:Added next task BuildTask(influxdb) to queue
INFO:kolla.image.build:Added next task BuildTask(mariadb) to queue
INFO:kolla.image.build:Added next task BuildTask(heka) to queue
INFO:kolla.image.build:Added next task BuildTask(tgtd) to queue
INFO:kolla.image.build:Added next task BuildTask(rabbitmq) to queue
INFO:kolla.image.build:Added next task BuildTask(iscsid) to queue
INFO:kolla.image.build:Added next task BuildTask(telegraf) to queue
INFO:kolla.image.build:Added next task BuildTask(haproxy) to queue
INFO:kolla.image.build:Attempting to run task BuildTask(elasticsearch) for the first time
INFO:kolla.image.build.elasticsearch:Building
INFO:kolla.image.build:Attempting to run task BuildTask(multipathd) for the first time
INFO:kolla.image.build.multipathd:Building
INFO:kolla.image.build:Attempting to run task BuildTask(etcd) for the first time
INFO:kolla.image.build.etcd:Building
INFO:kolla.image.build:Attempting to run task BuildTask(ceph-base) for the first time
INFO:kolla.image.build.ceph-base:Building
INFO:kolla.image.build:Attempting to run task BuildTask(kibana) for the first time
INFO:kolla.image.build.kibana:Building
INFO:kolla.image.build:Attempting to run task BuildTask(kolla-toolbox) for the first time
INFO:kolla.image.build.kolla-toolbox:Building
INFO:kolla.image.build:Attempting to run task BuildTask(cron) for the first time
INFO:kolla.image.build.cron:Building
INFO:kolla.image.build:Attempting to run task BuildTask(keepalived) for the first time
INFO:kolla.image.build.keepalived:Building
....
编译很费时间，简要粘贴一些日志。更多的编译选项可以参看：http://docs.openstack.org/developer/kolla/image-building.html。如果个别镜像编译失败可以重新执行以上操作，因为docker的容器缓存，重新编译会很快。编译成功后生成的镜像如下所示：
编译后的Docker镜像
[root@xiexianbin_cn ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
kolla/centos-binary-kolla-toolbox 3.0.2 d349475a477f 24 seconds ago 1.918 GB
kolla/centos-binary-neutron-server 3.0.2 f10522e2552c About a minute ago 1.09 GB
<none> <none> 099eec38ab93 9 minutes ago 1.09 GB
<none> <none> b1798c788a96 21 minutes ago 1.09 GB
<none> <none> 48aaadce2971 33 minutes ago 1.09 GB
kolla/centos-binary-magnum-conductor 3.0.2 d5a269e72265 About an hour ago 1.147 GB
kolla/centos-binary-grafana 3.0.2 ac191df99c1c About an hour ago 772.6 MB
kolla/centos-binary-magnum-api 3.0.2 32788dd86f0f About an hour ago 1.106 GB
<none> <none> 2816797ba3b6 About an hour ago 1.09 GB
<none> <none> c2acbcd6e2bb About an hour ago 1.604 GB
<none> <none> e04b3da60b03 About an hour ago 1.106 GB
kolla/centos-binary-heka 3.0.2 d6fdf0d36776 About an hour ago 657.4 MB
<none> <none> 181265dfa079 About an hour ago 1.09 GB
kolla/centos-binary-magnum-base 3.0.2 0d3796f3487b 2 hours ago 1.078 GB
<none> <none> 29db094e43ae 2 hours ago 1.09 GB
<none> <none> 3f7a2322dae3 2 hours ago 586.5 MB
<none> <none> 2cf66892fcf1 2 hours ago 1.09 GB
<none> <none> f52f2b97d3ad 2 hours ago 1.09 GB
kolla/centos-binary-nova-libvirt 3.0.2 d652a25e343a 3 hours ago 1.392 GB
kolla/centos-binary-mistral-executor 3.0.2 d16eb9712719 3 hours ago 933.8 MB
kolla/centos-binary-aodh-api 3.0.2 59694479b1c6 3 hours ago 872.8 MB
kolla/centos-binary-mistral-engine 3.0.2 875d26be8737 3 hours ago 933.8 MB
kolla/centos-binary-aodh-evaluator 3.0.2 3cf8e885992f 3 hours ago 872.8 MB
kolla/centos-binary-ceph-mon 3.0.2 a81b137524fc 3 hours ago 884.4 MB
kolla/centos-binary-aodh-notifier 3.0.2 6e3d78ae4251 3 hours ago 872.8 MB
kolla/centos-binary-ceph-osd 3.0.2 6c889b7703da 3 hours ago 884.4 MB
kolla/centos-binary-ceph-rgw 3.0.2 cb6e9c8ef329 3 hours ago 884.4 MB
kolla/centos-binary-keystone-fernet 3.0.2 f4152b8bfd18 3 hours ago 868.6 MB
kolla/centos-binary-aodh-expirer 3.0.2 68990d81db8b 3 hours ago 872.8 MB
kolla/centos-binary-trove-taskmanager 3.0.2 7a10224ec327 3 hours ago 827.5 MB
kolla/centos-binary-sahara-api 3.0.2 bc507ceb09fc 3 hours ago 839.1 MB
<none> <none> 5efec905301f 3 hours ago 1.09 GB
kolla/centos-binary-barbican-worker 3.0.2 86571b427a83 3 hours ago 829.6 MB
kolla/centos-binary-ceilometer-api 3.0.2 7f6933c32c39 3 hours ago 877.1 MB
kolla/centos-binary-barbican-api 3.0.2 5d4a4fe6160a 3 hours ago 830.4 MB
kolla/centos-binary-heat-engine 3.0.2 b41ddb70f194 3 hours ago 831.9 MB
kolla/centos-binary-cinder-scheduler 3.0.2 9965981ee913 3 hours ago 1.074 GB
kolla/centos-binary-ceilometer-notification 3.0.2 25fbb2f06fa5 3 hours ago 836.8 MB
kolla/centos-binary-designate-mdns 3.0.2 0dce6aa45f35 3 hours ago 861.1 MB
kolla/centos-binary-designate-pool-manager 3.0.2 af9cf52af3f8 3 hours ago 865.3 MB
kolla/centos-binary-ceph-base 3.0.2 479cc2abc9e9 3 hours ago 884.4 MB
kolla/centos-binary-zaqar 3.0.2 0f9b57972fdc 3 hours ago 835.4 MB
kolla/centos-binary-gnocchi-metricd 3.0.2 1931d07551d5 3 hours ago 1.145 GB
kolla/centos-binary-designate-sink 3.0.2 68845380ac8d 3 hours ago 861.1 MB
kolla/centos-binary-openvswitch-db-server 3.0.2 351d6fbfaeb7 3 hours ago 613.3 MB
<none> <none> dae8d73e4efe 3 hours ago 613.3 MB
kolla/centos-binary-mongodb 3.0.2 b2585915519e 3 hours ago 776.1 MB
kolla/centos-binary-openvswitch-vswitchd 3.0.2 3820c5b02197 3 hours ago 613.3 MB
<none> <none> 1710596e793f 40 hours ago 770 MB
kolla/centos-binary-openvswitch-base 3.0.2 1488016bb8de 40 hours ago 613.3 MB
kolla/centos-binary-cron 3.0.2 74c821896c16 40 hours ago 603.8 MB
kolla/centos-binary-memcached 3.0.2 db20c83927f7 40 hours ago 604.4 MB
kolla/centos-binary-haproxy 3.0.2 5e4d742fcd32 40 hours ago 623.4 MB
kolla/centos-binary-tgtd 3.0.2 4fdeb67f8ce9 40 hours ago 586.5 MB
kolla/centos-binary-mistral-api 3.0.2 2e2def779153 41 hours ago 933.8 MB
<none> <none> 4706855c3777 41 hours ago 933.8 MB
<none> <none> 5c56d094d4b1 41 hours ago 872.8 MB
<none> <none> c7d4e76ba9dd 41 hours ago 933.8 MB
<none> <none> 28c93cba47b8 41 hours ago 872.8 MB
<none> <none> ccd975b6d97c 41 hours ago 872.8 MB
<none> <none> 961f467467a5 41 hours ago 872.8 MB
kolla/centos-binary-aodh-listener 3.0.2 ae05ab12540c 41 hours ago 872.8 MB
kolla/centos-binary-manila-share 3.0.2 1b781f319f19 41 hours ago 871.7 MB
kolla/centos-binary-manila-api 3.0.2 ec45fb9d2c03 41 hours ago 823.4 MB
kolla/centos-binary-nova-compute 3.0.2 179c973d5051 41 hours ago 1.398 GB
<none> <none> 9711d7adf5e2 41 hours ago 1.392 GB
kolla/centos-binary-neutron-vpnaas-agent 3.0.2 b885faf258c7 41 hours ago 1.097 GB
kolla/centos-binary-neutron-lbaas-agent 3.0.2 5c7293474e7a 41 hours ago 1.092 GB
<none> <none> f83292368034 41 hours ago 1.09 GB
kolla/centos-binary-manila-scheduler 3.0.2 ac02e56f53c3 41 hours ago 823.4 MB
kolla/centos-binary-neutron-metadata-agent 3.0.2 9dd38c4bd86a 41 hours ago 1.059 GB
kolla/centos-binary-nova-compute-ironic 3.0.2 d769c643ce44 41 hours ago 1.308 GB
kolla/centos-binary-neutron-linuxbridge-agent 3.0.2 8abdcecd7040 41 hours ago 1.09 GB
kolla/centos-binary-neutron-metering-agent 3.0.2 860e594422a4 41 hours ago 1.09 GB
kolla/centos-binary-neutron-openvswitch-agent 3.0.2 19e30107aa7c 41 hours ago 1.09 GB
kolla/centos-binary-nova-ssh 3.0.2 db976568e1a4 41 hours ago 878.5 MB
kolla/centos-binary-neutron-dhcp-agent 3.0.2 3fabb84d762b 41 hours ago 1.059 GB
kolla/centos-binary-neutron-l3-agent 3.0.2 3fabb84d762b 41 hours ago 1.059 GB
kolla/centos-binary-nova-novncproxy 3.0.2 22fe8dfca712 41 hours ago 878.1 MB
<none> <none> 61c073ebe4b0 41 hours ago 1.059 GB
kolla/centos-binary-nova-serialproxy 3.0.2 6762279e714b 41 hours ago 877.6 MB
kolla/centos-binary-nova-consoleauth 3.0.2 3ba024378504 41 hours ago 877.6 MB
kolla/centos-binary-nova-api 3.0.2 acaef6288f70 41 hours ago 877.5 MB
kolla/centos-binary-nova-network 3.0.2 8c365ac81d82 41 hours ago 851 MB
kolla/centos-binary-nova-conductor 3.0.2 22da0e709721 41 hours ago 877.5 MB
kolla/centos-binary-nova-spicehtml5proxy 3.0.2 da86ec79f00c 41 hours ago 878 MB
kolla/centos-binary-nova-scheduler 3.0.2 e2d005f26476 41 hours ago 877.5 MB
kolla/centos-binary-trove-api 3.0.2 dbf533f80920 41 hours ago 827.5 MB
kolla/centos-binary-trove-guestagent 3.0.2 b1f772b5953e 41 hours ago 827.8 MB
kolla/centos-binary-trove-conductor 3.0.2 7bc4748089a4 41 hours ago 827.5 MB
<none> <none> 82d2698e65fd 41 hours ago 827.5 MB
kolla/centos-binary-swift-rsyncd 3.0.2 e59685a05758 41 hours ago 802.9 MB
kolla/centos-binary-swift-account 3.0.2 92c793db719c 41 hours ago 826.1 MB
kolla/centos-binary-swift-object 3.0.2 9dba2794066f 41 hours ago 826.2 MB
kolla/centos-binary-swift-object-expirer 3.0.2 a8a6a443b0bf 41 hours ago 826.1 MB
kolla/centos-binary-swift-proxy-server 3.0.2 a8a6a443b0bf 41 hours ago 826.1 MB
kolla/centos-binary-cinder-volume 3.0.2 1f4d7bf4449f 41 hours ago 1.076 GB
kolla/centos-binary-swift-container 3.0.2 2931ca348902 41 hours ago 826.1 MB
kolla/centos-binary-cinder-api 3.0.2 675b7708b5d8 41 hours ago 1.117 GB
kolla/centos-binary-cinder-rpcbind 3.0.2 cb9ca1234a7e 41 hours ago 1.107 GB
kolla/centos-binary-cinder-backup 3.0.2 954f0ac73778 41 hours ago 1.107 GB
<none> <none> 110a64f51305 41 hours ago 826.1 MB
<none> <none> a9883b9e5af3 41 hours ago 839.1 MB
kolla/centos-binary-sahara-engine 3.0.2 7253bc6c5778 41 hours ago 839.1 MB
<none> <none> fe9d57db5a57 41 hours ago 868.6 MB
<none> <none> 97fe4e62c609 41 hours ago 1.074 GB
kolla/centos-binary-elasticsearch 3.0.2 2555308e5305 41 hours ago 832.7 MB
kolla/centos-binary-keystone-ssh 3.0.2 21460edbacff 41 hours ago 869.3 MB
<none> <none> 964f6f8a49d9 41 hours ago 830.4 MB
kolla/centos-binary-keystone 3.0.2 948d821b93fe 41 hours ago 842.8 MB
kolla/centos-binary-barbican-keystone-listener 3.0.2 839729895d2b 41 hours ago 829.6 MB
<none> <none> f263035bc58d 41 hours ago 829.6 MB
kolla/centos-binary-heat-api 3.0.2 13a62f468d3c 41 hours ago 831.9 MB
kolla/centos-binary-heat-api-cfn 3.0.2 ee6403a9e5c8 41 hours ago 831.9 MB
kolla/centos-binary-glance-api 3.0.2 b10043d3234a 41 hours ago 935.9 MB
kolla/centos-binary-gnocchi-api 3.0.2 8abcbb102ad3 42 hours ago 1.145 GB
kolla/centos-binary-glance-registry 3.0.2 472a96cf1d71 42 hours ago 935.9 MB
<none> <none> cf977ef3727c 42 hours ago 831.9 MB
kolla/centos-binary-gnocchi-statsd 3.0.2 14306243f0d9 42 hours ago 1.145 GB
kolla/centos-binary-murano-api 3.0.2 bf12533dc723 42 hours ago 822.5 MB
<none> <none> e27139bbe009 42 hours ago 1.145 GB
kolla/centos-binary-ironic-conductor 3.0.2 632f4c21f63e 42 hours ago 952.6 MB
kolla/centos-binary-ironic-pxe 3.0.2 228b4a93074e 42 hours ago 840 MB
kolla/centos-binary-ironic-api 3.0.2 7da08b126272 42 hours ago 836.5 MB
kolla/centos-binary-ironic-inspector 3.0.2 560e307b9025 42 hours ago 842.2 MB
kolla/centos-binary-murano-engine 3.0.2 467de28d8da8 42 hours ago 822.4 MB
kolla/centos-binary-designate-central 3.0.2 781d57c480ca 42 hours ago 861.1 MB
<none> <none> 781e53919c04 42 hours ago 865.3 MB
kolla/centos-binary-designate-backend-bind9 3.0.2 b06a1989ec29 42 hours ago 865.3 MB
<none> <none> 6505fa869600 42 hours ago 861.1 MB
<none> <none> 813af8b30bfd 42 hours ago 861.1 MB
kolla/centos-binary-designate-api 3.0.2 04591aa56a7b 42 hours ago 861.1 MB
<none> <none> e74ea643bdc4 42 hours ago 877.1 MB
kolla/centos-binary-ceilometer-compute 3.0.2 b20ab481f6e7 42 hours ago 876.7 MB
kolla/centos-binary-ceilometer-central 3.0.2 2c6eb50940c8 42 hours ago 876.7 MB
kolla/centos-binary-ceilometer-collector 3.0.2 cc58a6de1816 42 hours ago 838.2 MB
kolla/centos-binary-mistral-base 3.0.2 b9394d15d670 42 hours ago 906.8 MB
<none> <none> 13794dc92680 42 hours ago 836.8 MB
kolla/centos-binary-aodh-base 3.0.2 212e5b792451 42 hours ago 846.9 MB
kolla/centos-binary-manila-base 3.0.2 ae0678191068 42 hours ago 823.4 MB
kolla/centos-binary-collectd 3.0.2 5a4e440d2aeb 42 hours ago 796.7 MB
kolla/centos-binary-neutron-base 3.0.2 947b30bd0eff 42 hours ago 1.059 GB
kolla/centos-binary-tempest 3.0.2 7d8aed306c53 42 hours ago 873 MB
kolla/centos-binary-nova-base 3.0.2 d3adf561f36e 42 hours ago 851 MB
kolla/centos-binary-trove-base 3.0.2 f3e7468ee1f0 42 hours ago 802.5 MB
kolla/centos-binary-swift-base 3.0.2 6e7498b4b269 42 hours ago 801.2 MB
kolla/centos-binary-horizon 3.0.2 77dace122edc 42 hours ago 1.003 GB
kolla/centos-binary-rally 3.0.2 c5668db21d17 42 hours ago 843.5 MB
kolla/centos-binary-cinder-base 3.0.2 e8f85accdf39 42 hours ago 1.074 GB
kolla/centos-binary-sahara-base 3.0.2 19eee9052efd 42 hours ago 813.7 MB
kolla/centos-binary-keystone-base 3.0.2 abdde611ed85 42 hours ago 842.8 MB
kolla/centos-binary-barbican-base 3.0.2 94565c026928 42 hours ago 804.5 MB
kolla/centos-binary-glance-base 3.0.2 5c274f156f9d 42 hours ago 935.9 MB
kolla/centos-binary-kibana 3.0.2 ec0ac3bdf236 42 hours ago 732.7 MB
kolla/centos-binary-heat-base 3.0.2 3b7908bcd7df 42 hours ago 806.8 MB
kolla/centos-binary-gnocchi-base 3.0.2 282d0fe797cf 42 hours ago 1.115 GB
kolla/centos-binary-mariadb 3.0.2 8510bd2e2dbe 42 hours ago 958.8 MB
kolla/centos-binary-murano-base 3.0.2 6b587445f4b4 42 hours ago 797.4 MB
kolla/centos-binary-ironic-base 3.0.2 16e006926092 42 hours ago 811 MB
kolla/centos-binary-designate-base 3.0.2 560219dd4737 42 hours ago 835.5 MB
kolla/centos-binary-ceilometer-base 3.0.2 3a2ce7e2d2c4 42 hours ago 811.2 MB
kolla/centos-binary-dind 3.0.2 30f2f68a071e 42 hours ago 770 MB
<none> <none> d4b9d15f11fa 42 hours ago 835.4 MB
<none> <none> ec8025290a6f 42 hours ago 770 MB
kolla/centos-binary-openstack-base 3.0.2 8878bf97ac8a 42 hours ago 770 MB
kolla/centos-binary-influxdb 3.0.2 e67f9e81166c 42 hours ago 653 MB
<none> <none> 740d0f9f3d63 42 hours ago 884.4 MB
<none> <none> 8ed7595f2188 42 hours ago 884.4 MB
<none> <none> e69b5894d42e 42 hours ago 613.3 MB
<none> <none> aba368b43d42 42 hours ago 613.3 MB
kolla/centos-binary-rabbitmq 3.0.2 b0ab44ee7852 42 hours ago 645.4 MB
kolla/centos-binary-multipathd 3.0.2 fa3e747b9d8a 42 hours ago 606.1 MB
kolla/centos-binary-telegraf 3.0.2 3a14aec32e55 42 hours ago 636 MB
<none> <none> da12824fa3a6 42 hours ago 776.1 MB
kolla/centos-binary-iscsid 3.0.2 6ca4d79abf20 42 hours ago 608.2 MB
kolla/centos-binary-etcd 3.0.2 fe58959d307a 42 hours ago 636 MB
kolla/centos-binary-keepalived 3.0.2 a4e1d883dc3c 42 hours ago 609.4 MB
<none> <none> be71a81d439a 42 hours ago 623.4 MB
<none> <none> 4da725eb39c2 42 hours ago 603.8 MB
<none> <none> 036c71724def 42 hours ago 604.4 MB
<none> <none> 51d52e69f3b8 42 hours ago 586.5 MB
kolla/centos-binary-base 3.0.2 ce9122ed6a7c 42 hours ago 584.8 MB
docker.io/centos 7 0584b3d2cf6d 4 weeks ago 196.5 MB
[root@xiexianbin_cn ~]#
注释：以开头的为编译失败的镜像。
部署容器
openstack环境的密码等变量可以在 /etc/kolla/passwords.yml 中指定，为了方便可以使用kolla-genpwd工具自动生成复杂密码。
kolla-genpwd
为了方便，我们修改其中的管理员登陆密码
vim /etc/kolla/passwords.yml
keystone_admin_password: admin
修改/etc/kolla/globals.yml 文件，指定部署的一些信息：
vim /etc/kolla/globals.yml
kolla_base_distro: "centos"
kolla_install_type: "binary"
openstack_release: "3.0.2"
# This should be a VIP, an unused IP on your network that will float between
# the hosts running keepalived for high-availability. When running an All-In-One
# without haproxy and keepalived, this should be the first IP on your
# 'network_interface' as set in the Networking section below.
kolla_internal_vip_address: "192.168.8.120
network_interface: "eno16777736"
neutron_external_interface: "eno33554894"
neutron_plugin_agent: "openvswitch"
openstack_logging_debug: "True"
kolla-ansible prechecks
[root@xiexianbin_cn kolla]# kolla-ansible prechecks
Pre-deployment checking : ansible-playbook -i /usr/share/kolla/ansible/inventory/all-in-one -e @/etc/kolla/globals.yml -e @/etc/kolla/passwords.yml -e CONFIG_DIR=/etc/kolla /usr/share/kolla/ansible/prechecks.yml
statically included: /usr/share/kolla/ansible/roles/prechecks/tasks/port_checks.yml
statically included: /usr/share/kolla/ansible/roles/prechecks/tasks/service_checks.yml
statically included: /usr/share/kolla/ansible/roles/prechecks/tasks/package_checks.yml
PLAY [all] *********************************************************************
TASK [setup] *******************************************************************
ok: [localhost]
TASK [prechecks : Checking free port for Aodh API] *****************************
ok: [localhost]
TASK [prechecks : Checking free port for Aodh API HAProxy] *********************
ok: [localhost]
TASK [prechecks : Checking free port for Barbican API] *************************
ok: [localhost]
TASK [prechecks : Checking free port for Barbican API HAProxy] *****************
ok: [localhost]
TASK [prechecks : Checking free port for Cinder API] ***************************
ok: [localhost]
TASK [prechecks : Checking free port for Cinder API HAProxy] *******************
ok: [localhost]
TASK [prechecks : Checking free port for Cloudkitty API] ***********************
ok: [localhost]
TASK [prechecks : Checking free port for Cloudkitty API HAProxy] ***************
ok: [localhost]
TASK [prechecks : Checking free port for Glance API] ***************************
ok: [localhost]
TASK [prechecks : Checking free port for Glance API HAProxy] *******************
ok: [localhost]
TASK [prechecks : Checking free port for Glance Registry] **********************
ok: [localhost]
TASK [prechecks : Checking free port for Gnocchi API] **************************
ok: [localhost]
TASK [prechecks : Checking free port for Gnocchi API HAProxy] ******************
ok: [localhost]
TASK [prechecks : Checking free port for Glance Registry HAProxy] **************
ok: [localhost]
TASK [prechecks : Checking free port for Sahara API] ***************************
ok: [localhost]
TASK [prechecks : Checking free port for Sahara API HAProxy] *******************
ok: [localhost]
TASK [prechecks : Checking free port for HAProxy stats] ************************
ok: [localhost]
TASK [prechecks : Checking free port for Heat API] *****************************
ok: [localhost]
TASK [prechecks : Checking free port for Heat API HAProxy] *********************
ok: [localhost]
TASK [prechecks : Checking free port for Heat API CFN] *************************
ok: [localhost]
TASK [prechecks : Checking free port for Heat API CFN HAProxy] *****************
ok: [localhost]
TASK [prechecks : Checking free port for Horizon] ******************************
ok: [localhost]
TASK [prechecks : Checking free port for Horizon HAProxy] **********************
ok: [localhost]
TASK [prechecks : Checking free port for Ironic] *******************************
ok: [localhost]
TASK [prechecks : Checking free port for Ironic HAProxy] ***********************
ok: [localhost]
TASK [prechecks : Checking free port for Keystone Admin] ***********************
ok: [localhost]
TASK [prechecks : Checking free port for Keystone Admin HAProxy] ***************
ok: [localhost]
TASK [prechecks : Checking free port for Keystone Public] **********************
ok: [localhost]
TASK [prechecks : Checking free port for Keystone Public HAProxy] **************
ok: [localhost]
TASK [prechecks : Checking free port for iscsi] ********************************
ok: [localhost]
TASK [prechecks : Checking free port for MariaDB] ******************************
ok: [localhost]
TASK [prechecks : Checking free port for MariaDB HAProxy] **********************
ok: [localhost]
TASK [prechecks : Checking free port for MariaDB WSREP] ************************
ok: [localhost]
TASK [prechecks : Checking free port for MariaDB IST] **************************
ok: [localhost]
TASK [prechecks : Checking free port for MariaDB SST] **************************
ok: [localhost]
TASK [prechecks : Checking free port for Manila API] ***************************
ok: [localhost]
TASK [prechecks : Checking free port for Manila API HAProxy] *******************
ok: [localhost]
TASK [prechecks : Checking free port for Memcached] ****************************
ok: [localhost]
TASK [prechecks : Checking free port for Murano API] ***************************
ok: [localhost]
TASK [prechecks : Checking free port for Murano API HAProxy] *******************
ok: [localhost]
TASK [prechecks : Checking free port for Neutron Server] ***********************
ok: [localhost]
TASK [prechecks : Checking free port for Neutron Server HAProxy] ***************
ok: [localhost]
TASK [prechecks : Checking free port for Nova API] *****************************
ok: [localhost]
TASK [prechecks : Checking free port for Nova API HAProxy] *********************
ok: [localhost]
TASK [prechecks : Checking free port for Nova Metadata] ************************
ok: [localhost]
TASK [prechecks : Checking free port for Nova Metadata HAProxy] ****************
ok: [localhost]
TASK [prechecks : Checking free port for Nova NoVNC Proxy] *********************
ok: [localhost]
TASK [prechecks : Checking free port for Nova NoVNC HAProxy] *******************
ok: [localhost]
TASK [prechecks : Checking free port for Nova Spice HTML5 Proxy] ***************
ok: [localhost]
TASK [prechecks : Checking free port for Nova Spice HTML5 HAProxy] *************
ok: [localhost]
TASK [prechecks : Checking free port for RabbitMQ] *****************************
ok: [localhost]
TASK [prechecks : Checking free port for RabbitMQ Management] ******************
ok: [localhost]
TASK [prechecks : Checking free port for RabbitMQ Management HAProxy] **********
ok: [localhost]
TASK [prechecks : Checking free port for RabbitMQ Cluster] *********************
ok: [localhost]
TASK [prechecks : Checking free port for RabbitMQ EPMD] ************************
ok: [localhost]
TASK [prechecks : Check if all rabbit hostnames are resolvable] ****************
ok: [localhost] => (item=localhost)
TASK [prechecks : fail] ********************************************************
skipping: [localhost] => (item={'_ansible_parsed': True, u'changed': False, u'stdout': u'127.0.0.1 STREAM xiexianbin_cn\n127.0.0.1 DGRAM \n127.0.0.1 RAW \n192.168.8.150 STREAM \n192.168.8.150 DGRAM \n192.168.8.150 RAW ', '_ansible_no_log': False, 'stdout_lines': [u'127.0.0.1 STREAM xiexianbin_cn', u'127.0.0.1 DGRAM ', u'127.0.0.1 RAW ', u'192.168.8.150 STREAM ', u'192.168.8.150 DGRAM ', u'192.168.8.150 RAW '], u'warnings': [], '_ansible_item_result': True, u'start': u'2016-12-04 14:21:49.729443', u'delta': u'0:00:00.003364', u'cmd': [u'getent', u'ahostsv4', u'xiexianbin_cn'], 'item': u'localhost', u'rc': 0, 'invocation': {'module_name': u'command', u'module_args': {u'creates': None, u'executable': None, u'_uses_shell': False, u'_raw_params': u'getent ahostsv4 xiexianbin_cn', u'removes': None, u'warn': True, u'chdir': None}}, u'end': u'2016-12-04 14:21:49.732807', u'stderr': u''})
TASK [prechecks : Checking free port for Mongodb] ******************************
ok: [localhost]
TASK [prechecks : Checking free port for Mongodb Web] **************************
ok: [localhost]
TASK [prechecks : Checking free port for Mongodb HAProxy] **********************
ok: [localhost]
TASK [prechecks : Checking free port for Rsync] ********************************
ok: [localhost]
TASK [prechecks : Checking free port for Swift Object Server] ******************
ok: [localhost]
TASK [prechecks : Checking free port for Swift Account Server] *****************
ok: [localhost]
TASK [prechecks : Checking free port for Swift Container Server] ***************
ok: [localhost]
TASK [prechecks : Checking free port for Swift Proxy Server] *******************
ok: [localhost]
TASK [prechecks : Checking free port for Swift Proxy Server HAProxy] ***********
ok: [localhost]
TASK [prechecks : Checking free port for RadosGW] ******************************
ok: [localhost]
TASK [prechecks : Checking free port for RadosGW HAProxy] **********************
ok: [localhost]
TASK [prechecks : Checking free port for Senlin API] ***************************
ok: [localhost]
TASK [prechecks : Checking free port for Senlin API HAProxy] *******************
ok: [localhost]
TASK [prechecks : Checking free port for Mistral API] **************************
ok: [localhost]
TASK [prechecks : Checking free port for Mistral API HAProxy] ******************
ok: [localhost]
TASK [prechecks : Checking if kolla_internal_vip_address and kolla_external_vip_address are not pingable from any node] ***
ok: [localhost] => (item=192.168.8.120)
ok: [localhost] => (item=192.168.8.120)
TASK [prechecks : Checking if kolla_internal_vip_address is in the same network as network_interface on all nodes] ***
ok: [localhost]
TASK [prechecks : Checking the network_interface is present] *******************
skipping: [localhost]
TASK [prechecks : Checking the network_interface is active] ********************
skipping: [localhost]
TASK [prechecks : Checking the network_interface configuration] ****************
skipping: [localhost]
TASK [prechecks : Checking the network_interface ip address configuration] *****
skipping: [localhost]
TASK [prechecks : Checking that libvirt is not running] ************************
ok: [localhost]
TASK [prechecks : Checking Docker version] *************************************
ok: [localhost]
TASK [prechecks : Checking if 'MountFlags' for docker service is set to 'shared'] ***
ok: [localhost]
TASK [prechecks : Checking if '/run' mount flag is set to 'shared'] ************
skipping: [localhost]
TASK [prechecks : Checking empty passwords in passwords.yml. Run kolla-genpwd if this task fails] ***
ok: [localhost -> localhost]
TASK [prechecks : Checking fernet_token_expiry in globals.yml. Update fernet_token_expiry to allowed value if this task fails] ***
ok: [localhost -> localhost]
TASK [prechecks : Checking number of network agents] ***************************
skipping: [localhost]
TASK [prechecks : Checking mongodb backend for ceilometer] *********************
skipping: [localhost]
TASK [prechecks : Checking LVM volume group exists for Cinder] *****************
skipping: [localhost]
TASK [prechecks : Checking docker-py version] **********************************
ok: [localhost]
TASK [prechecks : Checking Ansible version] ************************************
skipping: [localhost]
PLAY RECAP *********************************************************************
localhost : ok=80 changed=0 unreachable=0 failed=0
[root@xiexianbin_cn kolla]#
kolla-ansible deploy
[root@xiexianbin_cn ~]# kolla-ansible deploy
Deploying Playbooks : ansible-playbook -i /usr/share/kolla/ansible/inventory/all-in-one -e @/etc/kolla/globals.yml -e @/etc/kolla/passwords.yml -e CONFIG_DIR=/etc/kolla -e action=deploy /usr/share/kolla/ansible/site.yml
PLAY [Gather facts for all hosts] **********************************************
TASK [setup] *******************************************************************
ok: [localhost]
PLAY [ceph-mon,ceph-osd,ceph-rgw] **********************************************
TASK [setup] *******************************************************************
ok: [localhost]
TASK [common : include] ********************************************************
skipping: [localhost]
TASK [common : Registering common role has run] ********************************
skipping: [localhost]
TASK [ceph : include] **********************************************************
skipping: [localhost]
PLAY [collectd] ****************************************************************
TASK [setup] *******************************************************************
ok: [localhost]
TASK [common : include] ********************************************************
skipping: [localhost]
TASK [common : Registering common role has run] ********************************
skipping: [localhost]
TASK [collectd : include] ******************************************************
skipping: [localhost]
PLAY [elasticsearch] ***********************************************************
TASK [setup] *******************************************************************
ok: [localhost]
TASK [common : include] ********************************************************
skipping: [localhost]
TASK [common : Registering common role has run] ********************************
skipping: [localhost]
TASK [elasticsearch : include] *************************************************
skipping: [localhost]
PLAY [influxdb] ****************************************************************
TASK [setup] *******************************************************************
ok: [localhost]
TASK [common : include] ********************************************************
skipping: [localhost]
TASK [common : Registering common role has run] ********************************
skipping: [localhost]
TASK [influxdb : include] ******************************************************
skipping: [localhost]
PLAY [telegraf] ****************************************************************
TASK [setup] *******************************************************************
ok: [localhost]
TASK [common : include] ********************************************************
skipping: [localhost]
TASK [common : Registering common role has run] ********************************
skipping: [localhost]
TASK [telegraf : include] ******************************************************
skipping: [localhost]
PLAY [haproxy] *****************************************************************
TASK [setup] *******************************************************************
ok: [localhost]
TASK [common : include] ********************************************************
included: /usr/share/kolla/ansible/roles/common/tasks/deploy.yml for localhost
TASK [common : include] ********************************************************
included: /usr/share/kolla/ansible/roles/common/tasks/config.yml for localhost
TASK [common : Ensuring config directories exist] ******************************
ok: [localhost] => (item=heka)
ok: [localhost] => (item=kolla-toolbox)
ok: [localhost] => (item=cron)
ok: [localhost] => (item=cron/logrotate)
TASK [common : Copying over config.json files for services] ********************
ok: [localhost] => (item=heka)
ok: [localhost] => (item=kolla-toolbox)
ok: [localhost] => (item=cron)
TASK [common : Copying over heka config files] *********************************
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'aodh'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'barbican'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'elasticsearch'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'global'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'gnocchi'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'haproxy'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'horizon'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'keepalived'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'keystone'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'mariadb'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'openstack'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'rabbitmq'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-account-auditor'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-account-reaper'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-account-replicator'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-account-server'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-container-auditor'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-container-replicator'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-container-server'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-container-updater'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-object-auditor'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-object-expirer'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-object-replicator'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-object-server'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-object-updater'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-proxy-server'})
skipping: [localhost] => (item={u'src': u'swift', u'enabled': u'no', u'name': u'swift-rsyncd'})
TASK [common : Heka custom config file exists] *********************************
ok: [localhost]
TASK [common : Copying over heka custom config file] ***************************
skipping: [localhost]
TASK [common : Copying over cron logrotate config files] ***********************
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'ansible'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'aodh'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'barbican'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'cinder'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'cloudkitty'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'glance'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'global'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'gnocchi'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'haproxy'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'heat'})
skipping: [localhost] => (item={u'enabled': False, u'name': u'iscsid'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'keepalived'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'keystone'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'magnum'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'manila'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'mariadb'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'mistral'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'murano'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'neutron'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'nova'})
ok: [localhost] => (item={u'enabled': u'yes', u'name': u'rabbitmq'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'sahara'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'senlin'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'swift'})
skipping: [localhost] => (item={u'enabled': u'no', u'name': u'watcher'})
TASK [common : include] ********************************************************
included: /usr/share/kolla/ansible/roles/common/tasks/bootstrap.yml for localhost
TASK [common : Creating log volume] ********************************************
ok: [localhost]
TASK [common : include] ********************************************************
included: /usr/share/kolla/ansible/roles/common/tasks/start.yml for localhost
TASK [common : Starting heka container] ****************************************
...
漫长的部署，部署成功后查看容器
docker ps
[root@xiexianbin_cn ~]# yum install iptables-services -y
[root@xiexianbin_cn ~]# iptables -I INPUT -p tcp -m tcp --dport 80 -j ACCEPT
[root@xiexianbin_cn ~]# iptables -I INPUT -p tcp -m tcp --dport 6080 -j ACCEPT
[root@xiexianbin_cn ~]# service iptables save
iptables: Saving firewall rules to /etc/sysconfig/iptables: Full path required for exclude: net:[4026531956].
Full path required for exclude: net:[4026531956].
[ OK ]
[root@xiexianbin_cn ~]#
因为是在虚拟机中安装，不支持kvm，需要修改虚拟类型为qemu
vim /etc/kolla/nova-compute/nova.conf
[libvirt]
...
virt_type=qemu

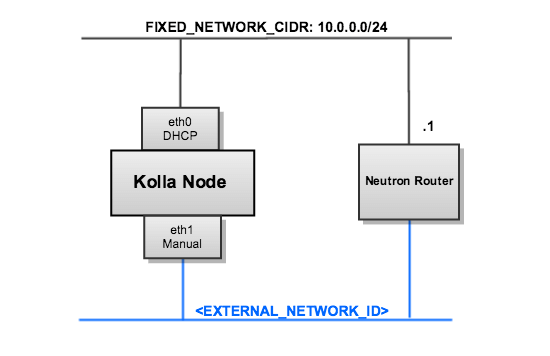

若使用单网卡，在部署到 neutron-ovs 容器的时候会断网， 需要配置 br-ex网桥，配置内容如下：
cat /etc/sysconfig/network-scripts/ifcfg-eno16777736
TYPE=OVSPort
DEVICE=eno16777736
ONBOOT=yes
DEVICETYPE=ovs
OVS_BRIDGE=br-ex
vim /etc/sysconfig/network-scripts/ifcfg-br-ex
DEVICE=br-ex
DEVICETYPE=ovs
TYPE=OVSBridge
BOOTPROTO=static
IPADDR=192.168.8.150
NETMASK=255.255.255.0
GATEWAY=192.168.8.1
重启网络服务：
systemctl restart network
我配置的是多网卡，不会遇到这个问题。
[root@xiexianbin_cn ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
c0f2825cf1b5 kolla/centos-binary-horizon:3.0.2 "kolla_start" 9 minutes ago Up 9 minutes horizon
d2f56206421f kolla/centos-binary-heat-engine:3.0.2 "kolla_start" 10 minutes ago Up 10 minutes heat_engine
f86fd08b784c kolla/centos-binary-heat-api-cfn:3.0.2 "kolla_start" 10 minutes ago Up 10 minutes heat_api_cfn
50ab3a69dc29 kolla/centos-binary-heat-api:3.0.2 "kolla_start" 10 minutes ago Up 10 minutes heat_api
d2cc908ab721 kolla/centos-binary-neutron-metadata-agent:3.0.2 "kolla_start" 10 minutes ago Up 10 minutes neutron_metadata_agent
47b8f1eb0652 kolla/centos-binary-neutron-l3-agent:3.0.2 "kolla_start" 10 minutes ago Up 10 minutes neutron_l3_agent
97f05805fa61 kolla/centos-binary-neutron-dhcp-agent:3.0.2 "kolla_start" 11 minutes ago Up 11 minutes neutron_dhcp_agent
e5b81d39ffe3 kolla/centos-binary-neutron-openvswitch-agent:3.0.2 "kolla_start" 11 minutes ago Up 11 minutes neutron_openvswitch_agent
2d8df58fe156 kolla/centos-binary-neutron-server:3.0.2 "kolla_start" 11 minutes ago Up 11 minutes neutron_server
af9de73fb369 kolla/centos-binary-openvswitch-vswitchd:3.0.2 "kolla_start" 11 minutes ago Up 11 minutes openvswitch_vswitchd
6a4f5db7a725 kolla/centos-binary-openvswitch-db-server:3.0.2 "kolla_start" 11 minutes ago Up 11 minutes openvswitch_db
df19c251179f kolla/centos-binary-nova-ssh:3.0.2 "kolla_start" 12 minutes ago Up 12 minutes nova_ssh
5c544565017f kolla/centos-binary-nova-compute:3.0.2 "kolla_start" 12 minutes ago Up 12 minutes nova_compute
987ff3a4c1bf kolla/centos-binary-nova-libvirt:3.0.2 "kolla_start" 12 minutes ago Up 12 minutes nova_libvirt
5a56fec78543 kolla/centos-binary-nova-conductor:3.0.2 "kolla_start" 12 minutes ago Up 12 minutes nova_conductor
e57dad22f626 kolla/centos-binary-nova-scheduler:3.0.2 "kolla_start" 12 minutes ago Up 12 minutes nova_scheduler
d6ae96e4e8fa kolla/centos-binary-nova-novncproxy:3.0.2 "kolla_start" 12 minutes ago Up 12 minutes nova_novncproxy
4d5d493f3310 kolla/centos-binary-nova-consoleauth:3.0.2 "kolla_start" 12 minutes ago Up 12 minutes nova_consoleauth
978af2be2627 kolla/centos-binary-nova-api:3.0.2 "kolla_start" 12 minutes ago Up 12 minutes nova_api
aa75fc975097 kolla/centos-binary-glance-api:3.0.2 "kolla_start" 14 minutes ago Up 14 minutes glance_api
33a0e1547df6 kolla/centos-binary-glance-registry:3.0.2 "kolla_start" 14 minutes ago Up 14 minutes glance_registry
33e56c677b1a kolla/centos-binary-keystone:3.0.2 "kolla_start" 15 minutes ago Up 15 minutes keystone
fd4757100788 kolla/centos-binary-rabbitmq:3.0.2 "kolla_start" 15 minutes ago Up 15 minutes rabbitmq
a96bacf389c9 kolla/centos-binary-mariadb:3.0.2 "kolla_start" 16 minutes ago Up 16 minutes mariadb
a67f4d0b47b0 kolla/centos-binary-memcached:3.0.2 "kolla_start" 16 minutes ago Up 16 minutes memcached
e8993732e77e kolla/centos-binary-keepalived:3.0.2 "kolla_start" 16 minutes ago Up 16 minutes keepalived
ddd5060c476a kolla/centos-binary-haproxy:3.0.2 "kolla_start" 16 minutes ago Up 16 minutes haproxy
dba52b3238a6 kolla/centos-binary-cron:3.0.2 "kolla_start" 17 minutes ago Up 17 minutes cron
2247007218a4 kolla/centos-binary-kolla-toolbox:3.0.2 "kolla_start" 17 minutes ago Up 17 minutes kolla_toolbox
b1e164d8a425 kolla/centos-binary-heka:3.0.2 "kolla_start" 17 minutes ago Up 17 minutes heka
[root@xiexianbin_cn ~]#
然后就可以通过 kolla_internal_vip_address 访问openstack环境

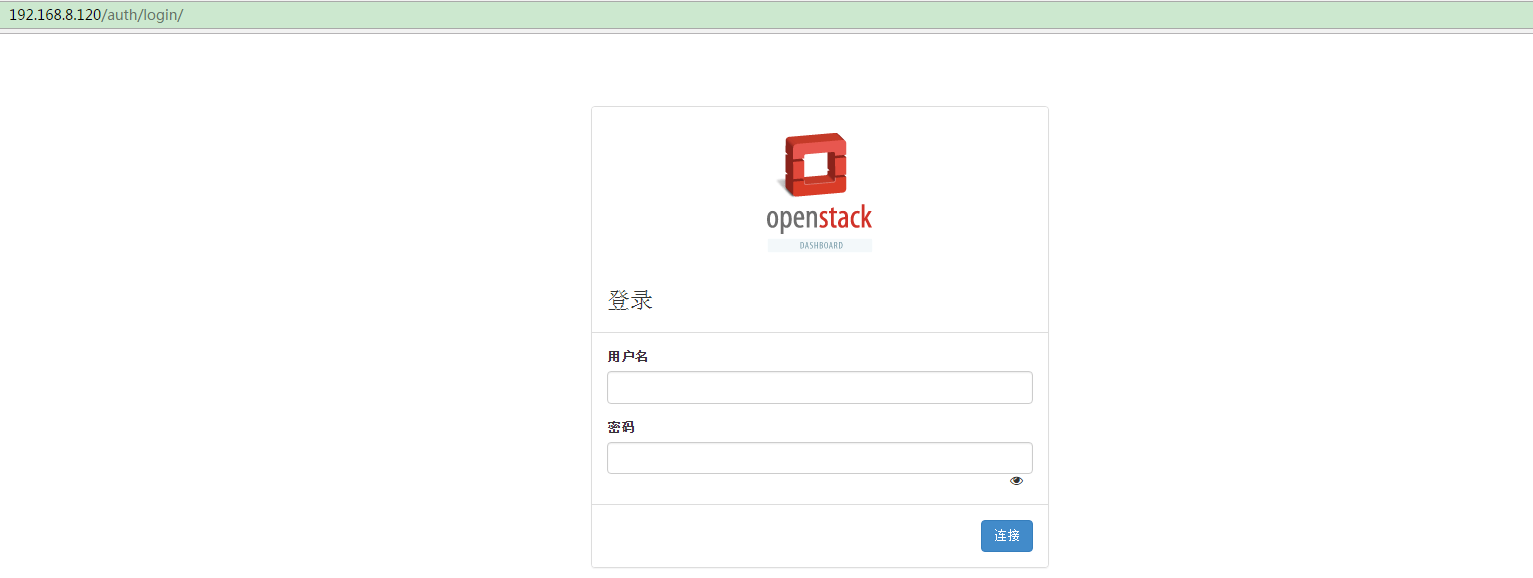

登录页面：

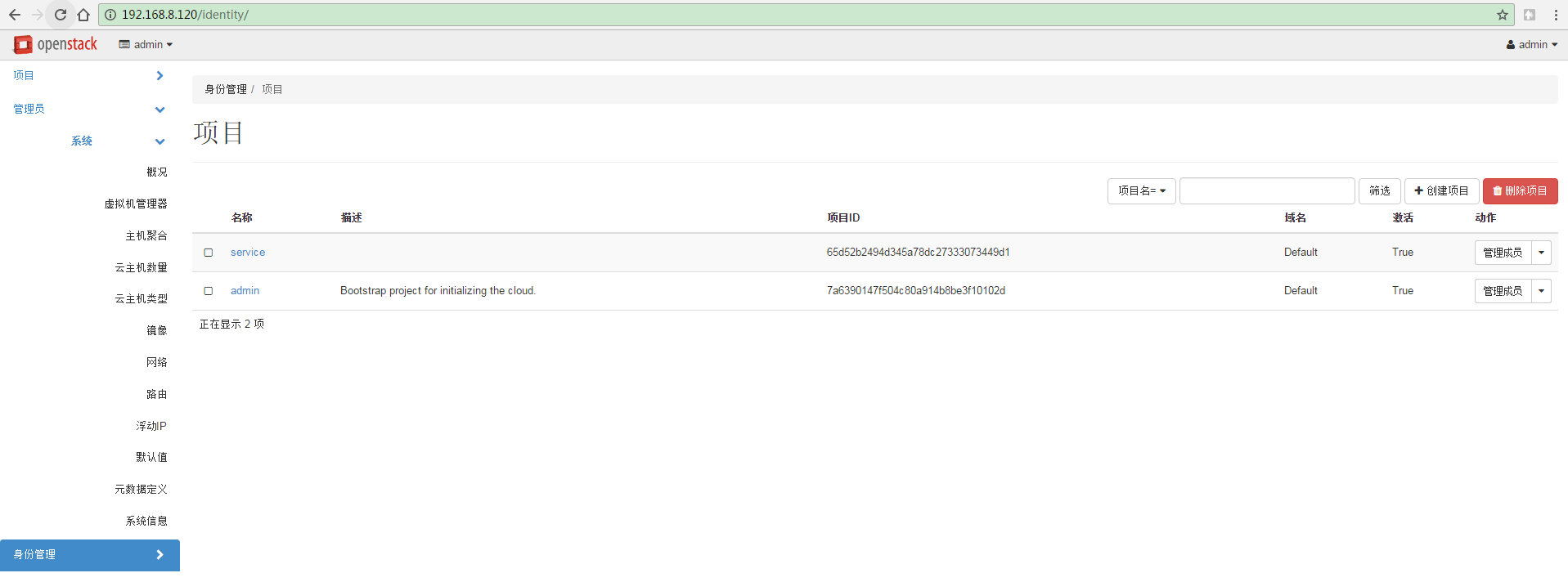

horizon页面：
工具介绍
部署完成后，运行以下命令可以生成一个openrc文件(运行openstack CLI所需的环境变量):
kolla-ansible post-deploy
openrc文件生成之后，使用以下命令可以帮你做一下openstack的初始化工作，包括上传一个glance镜像以及创建几个虚拟网络:
source /etc/kolla/admin-openrc.sh
kolla/tools/init-runonce
由于错误的出现，可能需要多次的部署，而有些错误重新部署是不会进行修正的，所以需要将整个环境进行清理:
tools/cleanup-containers #可用于从系统中移除部署的容器
tools/cleanup-host #可用于移除由于残余网络变化引发的docker启动的neutron-agents主机
tools/cleanup-images #可用于从本地缓存中移除所有的docker image
日志查看，kolla通过heka容器来收集所有容器的日志：
docker exec -it heka bash
所有的容器都可以从这个目录中获取服务日志：/var/log/kolla/SERVICE_NAME。如果需要输出日志，请运行：
docker logs
大多数容器不会stdout，上面的命令将不会提供信息。
Kolla使用
OpenStack Docker Images
本地Build Image，因为远程的pull image 速度太慢 而且 Kolla 社区不是每个commit修改都把image build一遍，所以本地build image是开发最好的选择。推荐使用source方式build。
Docker images：
https://hub.docker.com/u/kollaglue/
image building guide：
http://docs.openstack.org/developer/kolla/image-building.html
Docker Hub：
https://docs.docker.com/engine/userguide/containers/dockerimages/
Kolla代码目录结构
-
ansible - Contains Ansible playbooks to deploy Kolla in Docker containers.
-
demos - Contains a few demos to use with Kolla.
-
dev/heat - Contains an OpenStack-Heat based development environment.
-
dev/vagrant - Contains a vagrant VirtualBox/Libvirt based development environment.
-
doc - Contains documentation.
-
etc - Contains a reference etc directory structure which requires configuration of a small number of configuration variables to achieve a working All-in-One (AIO) deployment.
-
docker - Contains jinja2 templates for the docker build system.
-
tools - Contains tools for interacting with Kolla.
-
specs - Contains the Kolla communities key arguments about architectural shifts in the code base.
-
tests - Contains functional testing tools.
Debugging Kolla
可以通过执行的部署目标来确定容器的状态：
docker ps –a
通过日志来进行检查：
docker exec -it heka bash
所有的容器都可以从这个目录中获取服务日志：/var/log/kolla/SERVICE_NAME。Docker使用heka来展现收集到的日志信息。
如果需要输出日志，请运行：
docker logs <container-name>
请注意，大多数容器不会stdout，上面的命令将不会提供信息。
Kolla架构
Kolla项目的HA架构，如下图所示，大家应该一看就明白吧。是的，正如其他OpenStack项目一样，对于MySQL的HA方案，默认采用的均是Galera。
源码路径：specs/ha.svg
Kolla节点的网络架构，如下图所示。Kolla节点有2张网卡（eth0 IP由DHCP分配，用于内网使用；eth1 IP手动配置，用于外网使用，2个网段均和Neutron Router交互）。源码路径：doc/kollanet.png
PS：安装部署bug调试
启动docker镜像：
docker run -i -t -v /var/lib/kolla/config_files/config.json:/var/lib/kolla/config_files/config.json kolla/centos-binary-base:3.0.2 /bin/bash
