Neutron 从 instance 到外网数据包流介绍

发布时间: 更新时间: 总字数:1724 阅读时间:4m 作者: IP上海 分享 网址

Neutron instance到外网数据包流向介绍

名词介绍

qbr: quantum bridge ( qunaum is the former name of neutron ) qvb (Quantum veth bridge ) qvo (Quantum veth openvswitch)

通过命令查看网卡和交换机的连通性

  • 查看vm vif: cat /opt/stack/data/nova/instances/3065f30b-00fb-4d58-9028-7b76e9e4b262/libvirt.xml

    <interface type="bridge">
      <mac address="fa:16:3e:fa:47:7a"/>
      <model type="virtio"/>
      <driver name="qemu"/>
      <source bridge="qbrd6acfbb9-49"/>   --对应bridge名字
      <target dev="tapd6acfbb9-49"/>      --对应bridge上的插口
    </interface>

  • 查看linux bridge: brctl show 。bridge的两个口,一个连vm,一个连ovs

    brctl show
    bridge name	bridge id		STP enabled	interfaces
    qbrd6acfbb9-49		8000.6a99c16289a0	no		qvbd6acfbb9-49
    							                            tapd6acfbb9-49

  • ethtool -S qvbd6acfbb9-49 找出peer

    ethtool -S qvbd6acfbb9-49
    NIC statistics:
         peer_ifindex: 41

  • ip addr 找到peer是 qvod6acfbb9-49

    41: qvod6acfbb9-49: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master ovs-system state UP qlen 1000
        link/ether 92:16:c2:20:b9:61 brd ff:ff:ff:ff:ff:ff
        inet6 fe80::9016:c2ff:fe20:b961/64 scope link
           valid_lft forever preferred_lft forever

  • ovs-vsctl show,找出qvod6acfbb9-49,属于vlan1,位于br-int

    sudo ovs-vsctl show
    353e19b5-59fe-4937-bcd3-f0c6a6cd22fa
        Bridge br-int
            fail_mode: secure
            Port "tap81c26343-a6"                    --连dhcp namespace
                tag: 1
                Interface "tap81c26343-a6"
                    type: internal
            Port int-br-ex                           --连br-ex
                Interface int-br-ex
                    type: patch
                    options: {peer=phy-br-ex}
            Port "qvod6acfbb9-49"                    --连linux bridge
                tag: 1
                Interface "qvod6acfbb9-49"
            Port "qg-6b71d14f-27"                    --连router的外网ip网卡
                tag: 2
                Interface "qg-6b71d14f-27"
                    type: internal
            Port "qr-79cbf0f1-a2"                    --连router的内网ip网卡
                tag: 1
                Interface "qr-79cbf0f1-a2"
                    type: internal
            Port br-int
                Interface br-int
                    type: internal
            Port patch-tun                           --连br-tun
                Interface patch-tun
                    type: patch
                    options: {peer=patch-int}
        Bridge br-ex
            Port phy-br-ex                           --连br-int
                Interface phy-br-ex
                    type: patch
                    options: {peer=int-br-ex}
            Port "eth0"                              --连物理网卡,通往外网
                Interface "eth0"
            Port br-ex
                Interface br-ex
                    type: internal
        Bridge br-tun
            fail_mode: secure
            Port br-tun
                Interface br-tun
                    type: internal
            Port patch-int                           --连br-int
                Interface patch-int
                    type: patch
                    options: {peer=patch-tun}
        ovs_version: "2.4.0"

  • ovs-ofctl show br-int 查看qvod6acfbb9-49对应的编号是 7

    sudo ovs-ofctl show br-int
    OFPT_FEATURES_REPLY (xid=0x2): dpid:0000327c6d6b274e
    n_tables:254, n_buffers:256
    capabilities: FLOW_STATS TABLE_STATS PORT_STATS QUEUE_STATS ARP_MATCH_IP
    actions: output enqueue set_vlan_vid set_vlan_pcp strip_vlan mod_dl_src mod_dl_dst mod_nw_src mod_nw_dst mod_nw_tos mod_tp_src mod_tp_dst
     1(int-br-ex): addr:86:a0:f6:fe:17:8b
         config:     0
         state:      0
         speed: 0 Mbps now, 0 Mbps max
     2(patch-tun): addr:3a:34:63:b7:ab:e5
         config:     0
         state:      0
         speed: 0 Mbps now, 0 Mbps max
     3(tap81c26343-a6): addr:00:00:00:00:00:00
         config:     PORT_DOWN
         state:      LINK_DOWN
         speed: 0 Mbps now, 0 Mbps max
     4(qr-79cbf0f1-a2): addr:00:00:00:00:00:00
         config:     PORT_DOWN
         state:      LINK_DOWN
         speed: 0 Mbps now, 0 Mbps max
     5(qg-6b71d14f-27): addr:00:00:00:00:00:00
         config:     PORT_DOWN
         state:      LINK_DOWN
         speed: 0 Mbps now, 0 Mbps max
     7(qvod6acfbb9-49): addr:92:16:c2:20:b9:61
         config:     0
         state:      0
         current:    10GB-FD COPPER
         speed: 10000 Mbps now, 0 Mbps max
     LOCAL(br-int): addr:32:7c:6d:6b:27:4e
         config:     PORT_DOWN
         state:      LINK_DOWN
         speed: 0 Mbps now, 0 Mbps max
    OFPT_GET_CONFIG_REPLY (xid=0x4): frags=normal miss_send_len=0

  • ovs-ofctl dump-flows br-int 查看ovs的流表处理。

    sudo ovs-ofctl dump-flows br-int
    NXST_FLOW reply (xid=0x4):
     cookie=0x9c869d9a8de98c57, duration=147238.155s, table=0, n_packets=0, n_bytes=0, idle_age=65534, hard_age=65534, priority=10,icmp6,in_port=7,icmp_type=136 actions=resubmit(,24)
     cookie=0x9c869d9a8de98c57, duration=147238.133s, table=0, n_packets=50, n_bytes=2100, idle_age=901, hard_age=65534, priority=10,arp,in_port=7 actions=resubmit(,24)
     cookie=0x9c869d9a8de98c57, duration=148750.891s, table=0, n_packets=669828, n_bytes=119643190, idle_age=0, hard_age=65534, priority=3,in_port=1,vlan_tci=0x0000 actions=mod_vlan_vid:2,NORMAL
     cookie=0x9c869d9a8de98c57, duration=148781.700s, table=0, n_packets=85, n_bytes=15357, idle_age=65534, hard_age=65534, priority=2,in_port=1 actions=drop
     cookie=0x9c869d9a8de98c57, duration=148781.895s, table=0, n_packets=7722, n_bytes=852318, idle_age=40, hard_age=65534, priority=0 actions=NORMAL
     cookie=0x9c869d9a8de98c57, duration=148781.885s, table=23, n_packets=0, n_bytes=0, idle_age=65534, hard_age=65534, priority=0 actions=drop
     cookie=0x9c869d9a8de98c57, duration=147238.180s, table=24, n_packets=0, n_bytes=0, idle_age=65534, hard_age=65534, priority=2,icmp6,in_port=7,icmp_type=136,nd_target=fd61:19a:66c8:0:f816:3eff:fefa:477a actions=NORMAL
     cookie=0x9c869d9a8de98c57, duration=147238.167s, table=24, n_packets=0, n_bytes=0, idle_age=65534, hard_age=65534, priority=2,icmp6,in_port=7,icmp_type=136,nd_target=fe80::f816:3eff:fefa:477a actions=NORMAL
     cookie=0x9c869d9a8de98c57, duration=147238.143s, table=24, n_packets=50, n_bytes=2100, idle_age=901, hard_age=65534, priority=2,arp,in_port=7,arp_spa=10.0.0.3 actions=NORMAL
     cookie=0x9c869d9a8de98c57, duration=148781.875s, table=24, n_packets=0, n_bytes=0, idle_age=65534, hard_age=65534, priority=0 actions=drop


    以vm发出arp报文为例:arp报文从br-int的7号口(qvod6acfbb9-49)进入,先查table=0的,然后查priority高的,然后再找匹配规则,于是找到了 cookie=0x9c869d9a8de98c57, duration=147238.133s, table=0, n_packets=50, n_bytes=2100, idle_age=901, hard_age=65534, priority=10,arp,in_port=7 actions=resubmit(,24) ,执行的动作是转到table=24中处理,进而找到 cookie=0x9c869d9a8de98c57, duration=147238.143s, table=24, n_packets=50, n_bytes=2100, idle_age=901, hard_age=65534, priority=2,arp,in_port=7,arp_spa=10.0.0.3 actions=NORMAL 可以看出,flow entry遇到从7口进入的arp,并且arp来源(arp_spa)是10.0.0.3的,就放行。

    再以vm发出icmp报文为例:icmp报文从br-int的7号口(qvod6acfbb9-49)进入,先查table=0的,然后查priority高的,然后再找匹配规则,于是找到了 cookie=0x9c869d9a8de98c57, duration=148781.895s, table=0, n_packets=7722, n_bytes=852318, idle_age=40, hard_age=65534, priority=0 actions=NORMAL ,于是放行,然后报文根据mac地址,转发给了4号口,进而发到了router的10.0.0.1的qr-79cbf0f1-a2插口。

  • ip netns exec qrouter-f157f1eb-d257-4637-b3ae-79febebbf102 ip addr 查看router namespace中有哪些if

    sudo ip netns exec qrouter-f157f1eb-d257-4637-b3ae-79febebbf102 ip addr
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
        inet6 ::1/128 scope host
           valid_lft forever preferred_lft forever
    37: qr-79cbf0f1-a2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN
        link/ether fa:16:3e:0e:c4:6d brd ff:ff:ff:ff:ff:ff
        inet 10.0.0.1/24 brd 10.0.0.255 scope global qr-79cbf0f1-a2
           valid_lft forever preferred_lft forever
        inet6 fe80::f816:3eff:fe0e:c46d/64 scope link
           valid_lft forever preferred_lft forever
    38: qg-6b71d14f-27: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN
        link/ether fa:16:3e:ef:bb:b2 brd ff:ff:ff:ff:ff:ff
        inet 172.17.140.201/24 brd 172.17.140.255 scope global qg-6b71d14f-27
           valid_lft forever preferred_lft forever
        inet6 2001:db8::3/64 scope global
           valid_lft forever preferred_lft forever
        inet6 fe80::f816:3eff:feef:bbb2/64 scope link
           valid_lft forever preferred_lft forever

    sudo ip netns exec qrouter-f157f1eb-d257-4637-b3ae-79febebbf102 route -n
    Kernel IP routing table
    Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
    0.0.0.0         172.17.140.90   0.0.0.0         UG    0      0        0 qg-6b71d14f-27
    10.0.0.0        0.0.0.0         255.255.255.0   U     0      0        0 qr-79cbf0f1-a2
    172.17.140.0    0.0.0.0         255.255.255.0   U     0      0        0 qg-6b71d14f-27

    sudo ovs-ofctl show br-ex
    OFPT_FEATURES_REPLY (xid=0x2): dpid:0000005056b4c237
    n_tables:254, n_buffers:256
    capabilities: FLOW_STATS TABLE_STATS PORT_STATS QUEUE_STATS ARP_MATCH_IP
    actions: output enqueue set_vlan_vid set_vlan_pcp strip_vlan mod_dl_src mod_dl_dst mod_nw_src mod_nw_dst mod_nw_tos mod_tp_src mod_tp_dst
     1(eth0): addr:00:50:56:b4:c2:37
         config:     0
         state:      0
         current:    1GB-FD COPPER AUTO_NEG
         advertised: 10MB-HD 10MB-FD 100MB-HD 100MB-FD 1GB-FD COPPER AUTO_NEG
         supported:  10MB-HD 10MB-FD 100MB-HD 100MB-FD 1GB-FD COPPER AUTO_NEG
         speed: 1000 Mbps now, 1000 Mbps max
     2(phy-br-ex): addr:c2:85:db:67:32:20
         config:     0
         state:      0
         speed: 0 Mbps now, 0 Mbps max
     LOCAL(br-ex): addr:00:50:56:b4:c2:37
         config:     0
         state:      0
         speed: 0 Mbps now, 0 Mbps max
    OFPT_GET_CONFIG_REPLY (xid=0x4): frags=normal miss_send_len=0

    sudo ovs-ofctl dump-flows br-ex
    NXST_FLOW reply (xid=0x4):
     cookie=0x0, duration=151116.933s, table=0, n_packets=4105, n_bytes=339647, idle_age=41, hard_age=65534, priority=4,in_port=2,dl_vlan=2 actions=strip_vlan,NORMAL
     cookie=0x0, duration=151147.726s, table=0, n_packets=3381, n_bytes=484696, idle_age=3267, hard_age=65534, priority=2,in_port=2 actions=drop
     cookie=0x0, duration=151147.820s, table=0, n_packets=1301567, n_bytes=484025430, idle_age=0, hard_age=65534, priority=0 actions=NORMAL

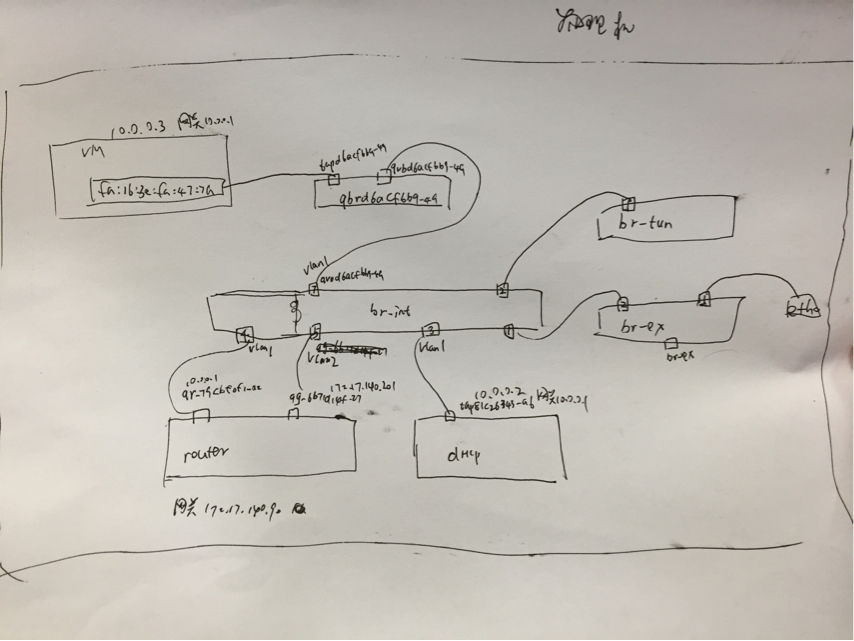

flow图

总结

因此: 从vm中ping 172.17.140.140,从vm到外网的数据包流向:

  • vm知道目的ip不属于本网段,于是arp广播,询问网关10.0.0.1的mac地址
  • arp包经过bridge,进而进入br-int的7号口,进而从4号口出去,达到router的10.0.0.1端口,随后mac地址原路返回
  • vm将10.0.0.1的mac地址写入frame头,ip报文中的目标ip仍然是外网地址172.17.140.140
  • 达到router后,router根据自己的路由表来判断该ip报文的下一跳是谁
  • router发现172.17.140.140和自己的ip 172.17.140.201是同一网段的,于是直接arp广播,询问172.17.140.140的mac地址
  • arp报文经过了br-ex,从eth0出去了
