OpenTelemetry 介绍

发布时间: 更新时间: 总字数:3030 阅读时间:7m 作者: IP上海 分享 网址

OpenTelemetry 是一个可观测性框架和工具包,旨在创建和管理遥测数据,如链路(traces)指标(metrics)日志(logs)

介绍

  • OpenTelemetry 是一个 CNCF 孵化级项目

    • 于 2019 年 5 月 7 日被 CNCF 接收,并于 2021 年 8 月 26 日转入孵化成熟度级别
    • 该项目由 OpenTracingOpenCensus 项目合并而诞生的
    • 100% 免费和开源的
  • OpenTelemetry 专注于遥测数据的生成采集管理导出

  • OpenTelemetry 是各类 API、SDK 和工具形成的集合

    • 可用于插桩、生成、采集和导出遥测数据(链路、指标和日志),帮助分析软件的性能和行为
    • 开发语言支持C++、.NET、Erlang / Elixir、Go、Java、JavaScript / TypeScript、PHP、Python、Ruby、Rust、Swift等
  • OpenTelemetry 的一个主要目标是,无论应用程序或系统采用何种编程语言、基础设施或运行时环境,都可以轻松地将其仪表化。重要的是,遥测数据的存储和可视化是有意留给其他工具处理的

    • OpenTelemetry 是供应商和工具无关的,这意味着它可以与各种可观测性后端一起使用,包括 Jaeger 和 Prometheus 等开源工具以及商业化产品
  • OpenTelemetry 可扩展性强

  • Observability and Analysis by CNCF

什么是可观测性

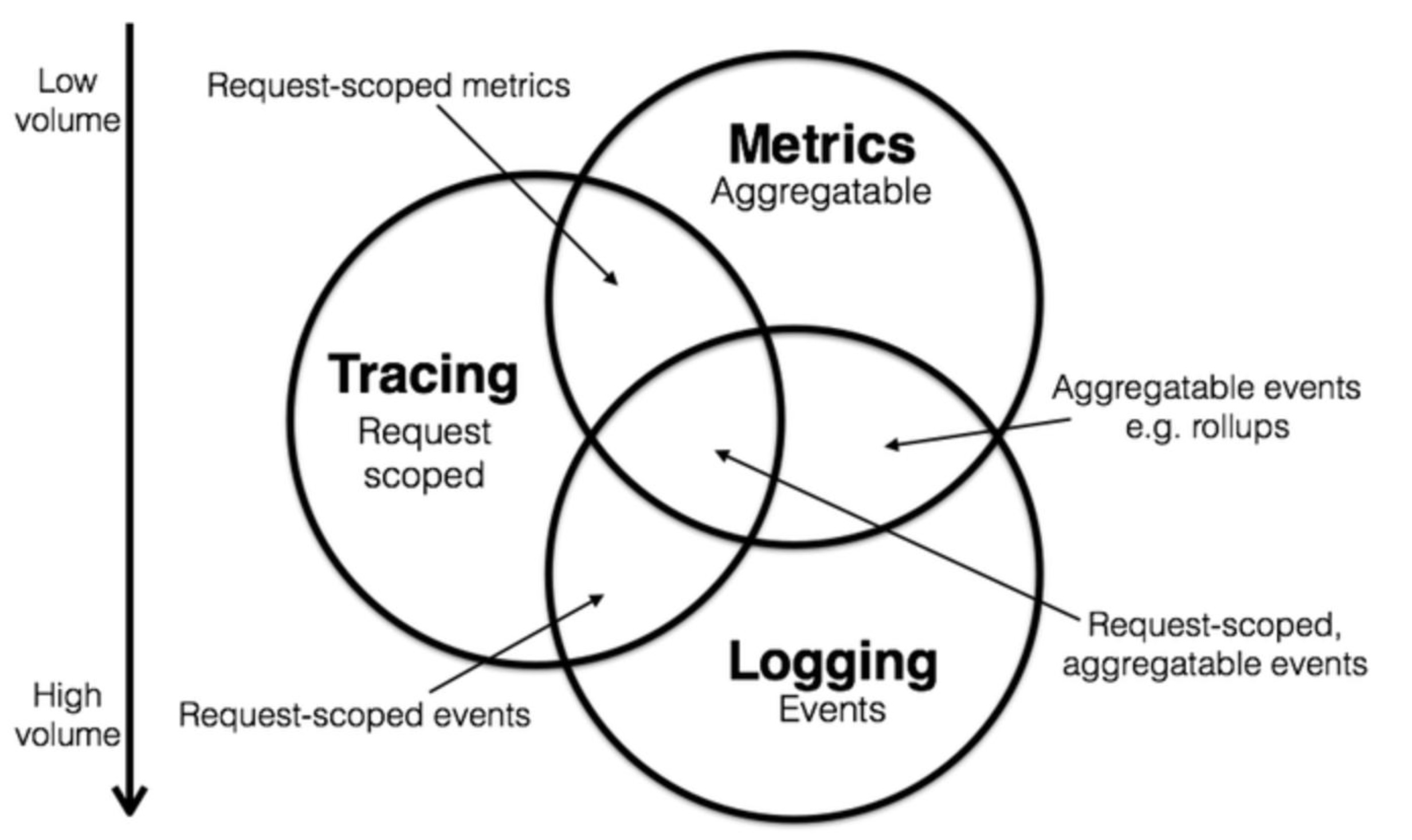

what-to-observability
  • 论文 Dapper, a Large-Scale Distributed Systems Tracing Infrastructure 提出 链路(traces)指标(metrics)日志(logs) 三大方向互为补充的可观测解决方案
    • 基于 eBPFProfiling(剖析数据) 作为补充
  • 可观测性具备检查系统输出来理解系统内部状态的能力。在软件的上下文中,这意味着通过检查遥测数据(包括链路、指标和日志)来理解系统的内部状态
  • 要使系统可观测,必须对其进行仪表化(可视化)
  • OpenTelemetry 包括可观测性的三个支柱
    • 分布式追踪 一种跟踪服务请求在分布式系统中从开始结束的方法
      • 在系统进程内部、进程间通过共享进程的 Context 上下文对象传递链路信息
      • Http Headers 可以起到传递 Context 载体作用,分布式追踪中称为 Propagators
    • 指标 对一段时间内活动的测量,反应系统或应用程序的性能
    • 日志 系统或应用程序在特定时间点发生的事件的文本记录

OpenTelemetry 组件

扩展

  • 统一数据采集
    • 数据类型:指标、链路、日志
    • 采集方式:拉、推方式
    • 数据源
      • OTEL SD/API
      • Prometheus Exporter
      • 应用、网关日志
      • 中间件等

核心概念

  • Observability primer(核心可观测性概念)
    • Logs
    • Spans 代表一个 工作(work)操作(operation) 单元。Spans 用来跟踪请求的特定操作,描绘出在执行该操作期间发生的情况
    • spanname, time-related data, structured log messages, and other metadata (that is, Attributes)更多请参考
  • Context Propagation(上下文传播) 常见的 传播器(Propagator) 包括
    • Trace Context:用于在 HTTP headers 中编码 trace 数据,以便在不同的服务间传递这些数据
    • Baggage 用于在 span 之间传递键值对数据,例如用户 ID、请求 ID 等
    • B3 用于在 HTTP headers 中编码 trace 数据,以便在不同的服务间传递这些数据(主要用于 Zipkin 或其兼容的系统)
  • Signals OpenTelemetry 支持的遥测类别
    • Traces 请求在应用程序的过程,记录应用程序请求时发生的细节
      • Tracer ProviderTracers 的工厂类,一般初始化一次,其生命周期与应用程序的生命周期一致,初始化还包括资源和导出程序的初始化
      • Tracer 跟踪器,通过创建 Spans 包含关于特定操作(如服务中的请求)的更多信息
      • Trace Exporters 向消费者发送跟踪信息
      • Context Propagation 是实现分布式跟踪的核心概念。通过 Context Propagation(上下文传播) 功能,无论 Spans 是在哪里生成的,都可以将 Spans 相互关联起来,并组合成一个 Trace
      • SpansTraces 的组成部分,包括如下信息:
        • Name
        • Parent span ID (empty for root spans)
        • Start and End Timestamps
        • Span Context
          • The Trace ID representing the trace that the span is a part of
          • The span’s Span ID
          • Trace Flags, a binary encoding containing information about the trace
          • Trace State, a list of key-value pairs that can carry vendor-specific trace information
        • Attributes
        • Span Events
        • Span Links
        • Span Status,可能得值
          • Unset
          • Error
          • Ok
        • Span Kind(Span 类型):Client, Server, Internal, Producer, or Consumer
    • Metrics 运行时捕获的测量值
    • Logs 文本事件记录
    • Baggage 信号之间传递的上下文信息
  • Instrumentation
    • .net/java/javascript 支持 零代码(Zero-code) 配置
  • 构成 OpenTelemetry 的主要组件
    • OpenTelemetry Collector 是一个与供应商无关的代理,可以接收、处理和导出遥测数据
      • 功能
        • receives traces, metrics, and logs
        • processes the telemetry
        • exports it to a wide variety of observability backends using its components
      • 它支持以多种格式接收遥测数据(例如 OTLP、Jaeger、Prometheus 以及许多商业/专有工具)并将数据发送到一个或多个后端
      • 更多参考
      • 部署模式
        • No Collector 直接从应用程序向后端发送信号
        • Agent 模式 向收集器发送信号,再从收集器向后端发送信号
        • Gateway 模式 向单个 OTLP 端点发送信号,并从那里向后端发送信号
    • APIs & SDK:OpenTelemetry SDK 允许您使用 OpenTelemetry API 以某种语言生成遥测数据并将数据导出到后端
  • 语义约定:不同类型的操作和数据的通用名称
  • Sampling
  • OpenTelemetry protocol (OTLP) https://github.com/open-telemetry/opentelemetry-proto/blob/main/docs/

安装 OpenTelemetry Collector

  • Collector 是与供应商无关的接收、处理和输出遥测数据的方式
  • 快速入门可以参考
  • 安装参考
  • receives 监听的端口
    • gRPC 4317
    • http 4318

架构

opentelemetry otel-collector

Docker

extensions:
  zpages:
    endpoint: localhost:55679

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: localhost:4317
      http:
        endpoint: localhost:4318

processors:
  batch:
  memory_limiter:
    # 75% of maximum memory up to 2G
    limit_mib: 1536
    # 25% of limit up to 2G
    spike_limit_mib: 512
    check_interval: 5s

exporters:
  debug:
    verbosity: detailed

service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [memory_limiter, batch]
      exporters: [debug]
    metrics:
      receivers: [otlp]
      processors: [memory_limiter, batch]
      exporters: [debug]

  extensions: [zpages]
  • start docker
docker run -v $(pwd)/config.yaml:/etc/otelcol-contrib/config.yaml otel/opentelemetry-collector-contrib:0.102.1

Kubernetes

# deploys an agent as a daemonset and a single gateway instance
kubectl apply -f https://raw.githubusercontent.com/open-telemetry/opentelemetry-collector/v0.102.1/examples/k8s/otel-config.yaml

# or by helm charts
helm repo add open-telemetry https://open-telemetry.github.io/opentelemetry-helm-charts

# or by OpenTelemetry Operator
# 1. create opentelemetry-operator deployment
kubectl apply -f https://github.com/open-telemetry/opentelemetry-operator/releases/latest/download/opentelemetry-operator.yaml

# 2. create an OpenTelemetry Collector (otelcol) instance
$ kubectl apply -f - <<EOF
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: simplest
spec:
  config: |
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318
    processors:

    exporters:
      # NOTE: Prior to v0.86.0 use `logging` instead of `debug`.
      debug:

    service:
      pipelines:
        traces:
          receivers: [otlp]
          processors: []
          exporters: [debug]
EOF

# 3. creates a basic Instrumentation resource that is configured specifically for instrumenting Go services
kubectl apply -f - <<EOF
apiVersion: opentelemetry.io/v1alpha1
kind: Instrumentation
metadata:
  name: demo-instrumentation
spec:
  exporter:
    endpoint: http://demo-collector:4318
  propagators:
    - tracecontext
    - baggage
  sampler:
    type: parentbased_traceidratio
    argument: "1"
EOF

# 4. Add annotations to existing deployments, spec.template.metadata.annotations
Go: instrumentation.opentelemetry.io/inject-go: "true"

Linux

sudo apt-get update
sudo apt-get -y install wget systemctl
wget https://github.com/open-telemetry/opentelemetry-collector-releases/releases/download/v0.102.1/otelcol_0.102.1_linux_amd64.deb
sudo dpkg -i otelcol_0.102.1_linux_amd64.deb

配置

  • otel-config.yaml 配置包括如下部分
    • Receivers 从一个或多个来源收集遥测数据,可基于拉式或推式,并可支持一个或多个数据源
    • Processors 将接收方收集的数据进行修改或转换,然后再发送给 exporters
      • 根据为每个处理器定义的规则或设置进行数据处理,其中可能包括过滤、丢弃、重命名或重新计算遥测数据等操作
    • Exporters 向一个或多个后端或目的地发送数据
      • 输出器可以是拉式或推式的,并可支持一个或多个数据源
    • Connectors 连接两条管道,同时充当输出方和接收方
    • Extensions 是可选组件,用于扩展采集器的功能,以完成与处理遥测数据不直接相关的任务

支持的 Exporters

  • open-telemetry/opentelemetry-collector 支持的 exporters
    • Debug
    • OTLP gRPC
    • OTLP HTTP
  • open-telemetry/opentelemetry-collector-contrib repository 有更多的 exporters 可在其构建中使用,包括(详细参考):
    • alertmanager
    • alibabacloudlogservice
    • awscloudwatchlogs
    • awsemf
    • awskinesis
    • awss3
    • awsxray
    • azuredataexplorer
    • azuremonitor
    • carbon
    • cassandra
    • clickhouse
    • coralogix
    • datadog
    • dataset
    • elasticsearch
    • file
    • googlecloud
    • googlecloudpubsub
    • googlemanagedprometheus
    • honeycombmarker
    • influxdb
    • instana
    • kafka
    • kinetica
    • loadbalancing
    • logicmonitor
    • logzio
    • loki
    • mezmo
    • opencensus
    • opensearch
    • otelarrow
    • prometheus
    • prometheusremotewrite
    • pulsar
    • rabbitmq
    • sapm
    • sentry
    • signalfx
    • skywalking
    • splunkhec
    • sumologic
    • syslog
    • tencentcloudlogservice
    • zipkin

Agent 模式

参考

  • Traces 配置
receivers:
  otlp: # the OTLP receiver the app is sending traces to
    protocols:
      http:
        endpoint: 0.0.0.0:4318

processors:
  batch:

exporters:
  otlp/jaeger: # Jaeger supports OTLP directly
    endpoint: https://jaeger.example.com:4317

service:
  pipelines:
    traces/dev:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlp/jaeger]
  • Metrics 配置
receivers:
  otlp: # the OTLP receiver the app is sending metrics to
    protocols:
      http:
        endpoint: 0.0.0.0:4318

processors:
  batch:

exporters:
  prometheusremotewrite: # the PRW exporter, to ingest metrics to backend
    endpoint: https://prw.example.com/v1/api/remote_write

service:
  pipelines:
    metrics/prod:
      receivers: [otlp]
      processors: [batch]
      exporters: [prometheusremotewrite]
  • Logs 配置
receivers:
  otlp: # the OTLP receiver the app is sending logs to
    protocols:
      http:
        endpoint: 0.0.0.0:4318

processors:
  batch:

exporters:
  file: # the File Exporter, to ingest logs to local file
    path: ./app42_example.log
    rotation:

service:
  pipelines:
    logs/dev:
      receivers: [otlp]
      processors: [batch]
      exporters: [file]

Gateway 模式

server {
    listen 4317 http2;
    server_name _;

    location / {
            grpc_pass      grpc://collector4317;
            grpc_next_upstream     error timeout invalid_header http_500;
            grpc_connect_timeout   2;
            grpc_set_header        Host            $host;
            grpc_set_header        X-Real-IP       $remote_addr;
            grpc_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

server {
    listen 4318;
    server_name _;

    location / {
            proxy_pass      http://collector4318;
            proxy_redirect  off;
            proxy_next_upstream     error timeout invalid_header http_500;
            proxy_connect_timeout   2;
            proxy_set_header        Host            $host;
            proxy_set_header        X-Real-IP       $remote_addr;
            proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

upstream collector4317 {
    server collector1:4317;
    server collector2:4317;
}

upstream collector4318 {
    server collector1:4318;
    server collector2:4318;
}

扩展

OpenTracing

CapabilityOpenTracing conceptOpenTelemetry concept
Represent traces as directed acyclic graphs (not just trees)span referencesspan links
Strongly typed span attributesspan tagsspan attributes
Strongly typed events/logsspan logsspan events

周边组件

  • OPLG
    • OpenTelemetry Traces:高质量的、无处不在的、便携式的遥测,以实现有效的可观测性,CNCF incubating project
      • OpenTelemetry Collector 边缘侧数据统一处理与路由
      • Demo
    • Prometheus Metircs
    • Loki Logs
    • Grafana Dashboards
  • OPLG 组件核心优势
    • 开源
    • 标准统一
    • 自由组合
  • Dubbo 链路追踪基于 Micrometer 实现
    • Micrometer 与 SpringBoot 3 适配的比较好, Java 优好
  • Grafana Tempo 是一个开源、易用且大规模的分布式跟踪后端
    • Tempo 成本效益高,只需对象存储即可运行,并与 Grafana、Prometheus 和 Loki 深度集成
    • Tempo 可以摄取常见的开源跟踪协议,包括 Jaeger、Zipkin 和 OpenTelemetry

实现

参考

  1. https://opentelemetry.io
  2. https://opentelemetry.io/zh/docs/demo/
