controller-runtime 是一套用于构建 kubernetes 控制器的 go 库。它被Kubebuilder和OperatorSDK所引用

介绍

第三方开发时绕开复杂的 client-go 实现

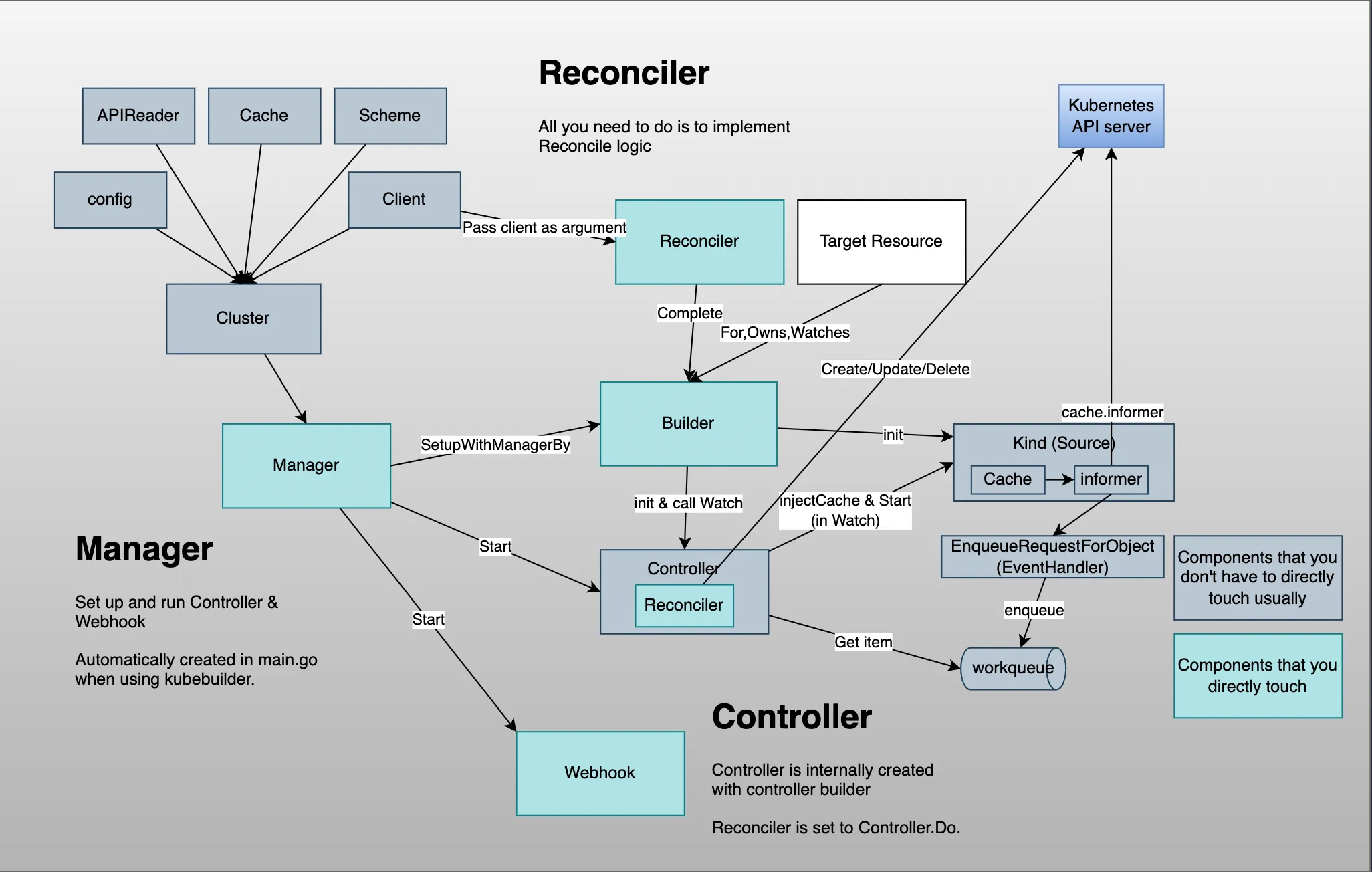

kubernetes-sigs/controller-runtime 代码架构如下

上图参考

调用关系如下

上图参考

Managers

每个 控制器(controller) 和 网络钩子(webhook) 最终都由一个管理器（Manager, pkg/manager）运行。管理器(Manager) 负责运行 控制器(controller) 和 网络钩子(webhook)，设置 共享缓存（cache，Infomer实现） 和客户端等常见依赖项，以及管理领导者选举（pkg/leaderelection）。管理器通常会通过连接信号处理程序（pkg/manager/signals），在 pod 终止时优雅地关闭控制器。

Controllers

控制器（pkg/controller）使用事件（pkg/event）来最终触发调和请求。它们可以手动构建，但通常使用构建器（pkg/builder）来构建，该构建器可简化事件源（pkg/source）（如 Kubernetes API 对象变更）与事件处理程序（pkg/handler）的连接，如 “为对象所有者queue 一个对账请求”。谓词（pkg/predicate）可用于过滤哪些事件会真正触发调节器（reconciles）。常用情况下有预写的实用程序，高级情况下有接口和帮助程序。

PS: Controller 一方面会向 Informer 注册 eventHandler，另一方面会从队列中拿数据并执行用户侧 Reconciler 的函数

Reconcilers

控制器逻辑是通过调节器（pkg/reconcile）实现的。调节器实现了一个函数，该函数接收包含要调节对象名称和命名空间的调节请求，调节对象，并返回一个 Response 或一个错误信息，表明是否重新请求进行第二轮处理。

Clients and Caches

调和器使用客户端（pkg/client）访问 API 对象。管理器提供的默认客户端从本地共享缓存（pkg/cache）中读取，并直接写入 API 服务器，但也可以构建只与 API 服务器对话的客户端，而不使用缓存。缓存会自动填充监视对象，并在请求其他结构化对象时自动填充。默认的拆分客户端不承诺在写入过程中使缓存失效（也不承诺按顺序创建/获取一致性），代码不应假定在创建/更新后立即获取会返回更新的资源。缓存还可以有索引，索引可以通过从管理器获取的 FieldIndexer (pkg/client) 创建。索引可用于快速、轻松地查找设置了某些字段的所有对象。调节器可检索事件记录器（pkg/recorder），以便使用管理器发出事件。

PS：Cache（缓存） 用于建立 Informer 对 ApiServer 进行连接 watch 资源，并将 watch 到的 object 推入队列

Schemes

Kubernetes中的客户端、缓存和许多其他东西都使用方案（pkg/scheme）将 Go 类型与 Kubernetes API Kinds（具体来说是 Group-Version-Kinds）相关联。

Webhooks

同样，网络钩子（pkg/webhook/admission）也可以直接实现，但通常使用构建器（pkg/webhook/admission/builder）来构建。它们通过由管理器管理的服务器（pkg/webhook）运行。

Logging and Metrics

controller-runtime 中的日志 (pkg/log) 是通过结构化日志完成的，使用的是名为 logr 的日志接口集 (https://pkg.go.dev/github.com/go-logr/logr)。虽然 controller-runtime 提供了使用 Zap(https://go.uber.org/zap, pkg/log/zap)的简易设置，但你也可以提供任何 logr 实现作为 controller-runtime 的基础日志记录器。 controller-runtime 提供的指标 (pkg/metrics) 会注册到特定于 controller-runtime 的 Prometheus 指标注册表中。管理器可通过 HTTP 端点为这些指标提供服务，其他指标也可正常注册到该注册表中。

示例

重要方法说明
- sigs.k8s.io/controller-runtime 中通过变量定义入口，包括
  - GetConfigOrDie 创建 *rest.Config，用于调用 Kubernetes apiserver
  - GetConfig
    - 支持通过 --kubeconfig指定，默认为 $HOME/.kube/config
  - NewControllerManagedBy
  - NewWebhookManagedBy
  - NewManager 等
- builder
  - ControllerManagedBy 返回一个新的 控制器构建器（controller builder），该构建器将由提供的管理器启动
  - Complete 构建Application Controller
  - For 定义了 reconciled 的对象类型，并配置 ControllerManagedBy 通过 reconciling the object 来响应创建/删除/更新事件。这等同于调用 Watches(&source.Kind{Type: apiType}, &handler.EnqueueRequestForObject{})
  - Watches 定义要监控的对象类型，配置 ControllerManagedBy，使其通过 reconciling the object 与给定的 EventHandler 来响应创建/删除/更新事件
  - WatchesMetadata 与 Watches 相同，仅监控 Metadata
    - 当观察大量对象、非常大的对象或只知道 GVK 但不知道其结构的对象时，这非常有用
优化技巧
- PartialObjectMetadata
- https://pkg.go.dev/sigs.k8s.io/controller-runtime/pkg/cache#ByObject

Reconcile 用法

Reconcile 用法 ...

// https://github.com/kubernetes-sigs/controller-runtime/blob/v0.17.3/example_test.go#L47
package main

import (
	"context"
	"fmt"
	"os"

	appsv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"

	ctrl "sigs.k8s.io/controller-runtime"
	"sigs.k8s.io/controller-runtime/pkg/client"
)

// This example creates a simple application Controller that is configured for ReplicaSets and Pods.
//
// * Create a new application for ReplicaSets that manages Pods owned by the ReplicaSet and calls into
// ReplicaSetReconciler.
//
// * Start the application.
func main() {
	log := ctrl.Log.WithName("builder-examples")

	manager, err := ctrl.NewManager(
		ctrl.GetConfigOrDie(),
		ctrl.Options{}, // arguments for creating a new Manager, like Scheme, Cache, Client, Election
	)
	if err != nil {
		log.Error(err, "could not create manager")
		os.Exit(1)
	}

	err = ctrl.
		NewControllerManagedBy(manager). // Create the Controller
		For(&appsv1.ReplicaSet{}).       // ReplicaSet is the Application API
		Owns(&corev1.Pod{}).             // ReplicaSet owns Pods created by it
		Complete(&ReplicaSetReconciler{Client: manager.GetClient()})
	if err != nil {
		log.Error(err, "could not create controller")
		os.Exit(1)
	}

	if err := manager.Start(ctrl.SetupSignalHandler()); err != nil {
		log.Error(err, "could not start manager")
		os.Exit(1)
	}
}

// ReplicaSetReconciler is a simple Controller example implementation.
type ReplicaSetReconciler struct {
	client.Client
}

// Implement the business logic:
// This function will be called when there is a change to a ReplicaSet or a Pod with an OwnerReference
// to a ReplicaSet.
//
// * Read the ReplicaSet
// * Read the Pods
// * Set a Label on the ReplicaSet with the Pod count.
func (a *ReplicaSetReconciler) Reconcile(ctx context.Context, req ctrl.Request) (ctrl.Result, error) {
	// Read the ReplicaSet
	rs := &appsv1.ReplicaSet{}
	err := a.Get(ctx, req.NamespacedName, rs)
	if err != nil {
		return ctrl.Result{}, err
	}

	// List the Pods matching the PodTemplate Labels
	pods := &corev1.PodList{}
	err = a.List(ctx, pods, client.InNamespace(req.Namespace), client.MatchingLabels(rs.Spec.Template.Labels))
	if err != nil {
		return ctrl.Result{}, err
	}

	// Update the ReplicaSet
	rs.Labels["pod-count"] = fmt.Sprintf("%v", len(pods.Items))
	err = a.Update(ctx, rs)
	if err != nil {
		return ctrl.Result{}, err
	}

	return ctrl.Result{}, nil
}
source repo / download raw

EventHandler 用法

参考

EventHandler 用法 ...

// https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.16.0/pkg/controller#example-New
// https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.17.3/pkg/handler#example-Funcs
package main

import (
	"context"
	"os"

	corev1 "k8s.io/api/core/v1"
	"k8s.io/apimachinery/pkg/types"
	"k8s.io/client-go/util/workqueue"
	ctrl "sigs.k8s.io/controller-runtime"
	"sigs.k8s.io/controller-runtime/pkg/controller"
	"sigs.k8s.io/controller-runtime/pkg/event"
	"sigs.k8s.io/controller-runtime/pkg/handler"
	"sigs.k8s.io/controller-runtime/pkg/source"

	"sigs.k8s.io/controller-runtime/pkg/reconcile"
)

func main() {
	log := ctrl.Log.WithName("builder-examples")
	manager, err := ctrl.NewManager(
		ctrl.GetConfigOrDie(),
		ctrl.Options{}, // arguments for creating a new Manager, like Scheme, Cache, Client, Election
	)
	if err != nil {
		log.Error(err, "could not create manager")
		os.Exit(1)
	}

	c, err := controller.New("pod-controller", manager, controller.Options{
		Reconciler: reconcile.Func(func(context.Context, reconcile.Request) (reconcile.Result, error) {
			// Your business logic to implement the API by creating, updating, deleting objects goes here.
			return reconcile.Result{}, nil
		}),
	})
	if err != nil {
		log.Error(err, "unable to create pod-controller")
		os.Exit(1)
	}

	// controller is a controller.controller
	err = c.Watch(
		source.Kind(manager.GetCache(), &corev1.Pod{}),
		handler.Funcs{
			CreateFunc: func(ctx context.Context, e event.CreateEvent, q workqueue.RateLimitingInterface) {
				q.Add(reconcile.Request{NamespacedName: types.NamespacedName{
					Name:      e.Object.GetName(),
					Namespace: e.Object.GetNamespace(),
				}})
			},
			UpdateFunc: func(ctx context.Context, e event.UpdateEvent, q workqueue.RateLimitingInterface) {
				q.Add(reconcile.Request{NamespacedName: types.NamespacedName{
					Name:      e.ObjectNew.GetName(),
					Namespace: e.ObjectNew.GetNamespace(),
				}})
			},
			DeleteFunc: func(ctx context.Context, e event.DeleteEvent, q workqueue.RateLimitingInterface) {
				q.Add(reconcile.Request{NamespacedName: types.NamespacedName{
					Name:      e.Object.GetName(),
					Namespace: e.Object.GetNamespace(),
				}})
			},
			GenericFunc: func(ctx context.Context, e event.GenericEvent, q workqueue.RateLimitingInterface) {
				q.Add(reconcile.Request{NamespacedName: types.NamespacedName{
					Name:      e.Object.GetName(),
					Namespace: e.Object.GetNamespace(),
				}})
			},
		},
	)
	if err != nil {
		// handle it
		panic(err)
	}

	if err := manager.Start(ctrl.SetupSignalHandler()); err != nil {
		log.Error(err, "could not start manager")
		os.Exit(1)
	}
}
source repo / download raw

Cache selector 用法

Cache selector 用法 ...

// https://github.com/kubernetes-sigs/controller-runtime/blob/v0.17.3/example_test.go#L47
// https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.17.3/pkg/manager#example-New-LimitToNamespaces
package main

import (
	"context"
	"fmt"
	"os"

	appsv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"
	"k8s.io/client-go/rest"

	ctrl "sigs.k8s.io/controller-runtime"
	"sigs.k8s.io/controller-runtime/pkg/cache"
	"sigs.k8s.io/controller-runtime/pkg/client"
)

// This example creates a simple application Controller that is configured for ReplicaSets and Pods.
//
// * Create a new application for ReplicaSets that manages Pods owned by the ReplicaSet and calls into
// ReplicaSetReconciler.
//
// * Start the application.
func main() {
	log := ctrl.Log.WithName("builder-examples")

	manager, err := ctrl.NewManager(
		ctrl.GetConfigOrDie(),
		ctrl.Options{
			NewCache: func(config *rest.Config, opts cache.Options) (cache.Cache, error) {
				opts.DefaultNamespaces = map[string]cache.Config{
					"namespace1": {},
					"namespace2": {},
				}
				return cache.New(config, opts)
			},
		}, // arguments for creating a new Manager, like Scheme, Cache, Client, Election
	)
	if err != nil {
		log.Error(err, "could not create manager")
		os.Exit(1)
	}

	err = ctrl.
		NewControllerManagedBy(manager). // Create the Controller
		For(&appsv1.ReplicaSet{}).       // ReplicaSet is the Application API
		Owns(&corev1.Pod{}).             // ReplicaSet owns Pods created by it
		Complete(&ReplicaSetReconciler{Client: manager.GetClient()})
	if err != nil {
		log.Error(err, "could not create controller")
		os.Exit(1)
	}

	if err := manager.Start(ctrl.SetupSignalHandler()); err != nil {
		log.Error(err, "could not start manager")
		os.Exit(1)
	}
}

// ReplicaSetReconciler is a simple Controller example implementation.
type ReplicaSetReconciler struct {
	client.Client
}

// Implement the business logic:
// This function will be called when there is a change to a ReplicaSet or a Pod with an OwnerReference
// to a ReplicaSet.
//
// * Read the ReplicaSet
// * Read the Pods
// * Set a Label on the ReplicaSet with the Pod count.
func (a *ReplicaSetReconciler) Reconcile(ctx context.Context, req ctrl.Request) (ctrl.Result, error) {
	// Read the ReplicaSet
	rs := &appsv1.ReplicaSet{}
	err := a.Get(ctx, req.NamespacedName, rs)
	if err != nil {
		return ctrl.Result{}, err
	}

	// List the Pods matching the PodTemplate Labels
	pods := &corev1.PodList{}
	err = a.List(ctx, pods, client.InNamespace(req.Namespace), client.MatchingLabels(rs.Spec.Template.Labels))
	if err != nil {
		return ctrl.Result{}, err
	}

	// Update the ReplicaSet
	rs.Labels["pod-count"] = fmt.Sprintf("%v", len(pods.Items))
	err = a.Update(ctx, rs)
	if err != nil {
		return ctrl.Result{}, err
	}

	return ctrl.Result{}, nil
}
source repo / download raw

Custom Handler 用法

Custom Handler 用法 ...

// https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.17.3#example-package-CustomHandler
package main

import (
	"context"
	"encoding/json"
	"os"

	corev1 "k8s.io/api/core/v1"

	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/runtime"
	"k8s.io/apimachinery/pkg/types"

	ctrl "sigs.k8s.io/controller-runtime"
	"sigs.k8s.io/controller-runtime/pkg/client"
	"sigs.k8s.io/controller-runtime/pkg/handler"
	"sigs.k8s.io/controller-runtime/pkg/reconcile"

	// since we invoke tests with -ginkgo.junit-report we need to import ginkgo.
	_ "github.com/onsi/ginkgo/v2"
)

type ExampleCRDWithConfigMapRef struct {
	metav1.TypeMeta   `json:",inline"`
	metav1.ObjectMeta `json:"metadata,omitempty"`
	ConfigMapRef      corev1.LocalObjectReference `json:"configMapRef"`
}

func deepCopyObject(arg any) runtime.Object {

	argBytes, err := json.Marshal(arg)
	if err != nil {
		panic(err)
	}
	out := &ExampleCRDWithConfigMapRefList{}
	if err := json.Unmarshal(argBytes, out); err != nil {
		panic(err)
	}
	return out
}

// DeepCopyObject implements client.Object.
func (in *ExampleCRDWithConfigMapRef) DeepCopyObject() runtime.Object {
	return deepCopyObject(in)
}

type ExampleCRDWithConfigMapRefList struct {
	metav1.TypeMeta `json:",inline"`
	metav1.ListMeta `json:"metadata,omitempty"`
	Items           []ExampleCRDWithConfigMapRef `json:"items"`
}

// DeepCopyObject implements client.ObjectList.
func (in *ExampleCRDWithConfigMapRefList) DeepCopyObject() runtime.Object {
	return deepCopyObject(in)
}

func main() {
	log := ctrl.Log.WithName("builder-examples")

	manager, err := ctrl.NewManager(ctrl.GetConfigOrDie(), ctrl.Options{})
	if err != nil {
		log.Error(err, "could not create manager")
		os.Exit(1)
	}

	err = ctrl.
		NewControllerManagedBy(manager).
		For(&ExampleCRDWithConfigMapRef{}).
		Watches(&corev1.ConfigMap{}, handler.EnqueueRequestsFromMapFunc(func(ctx context.Context, cm client.Object) []ctrl.Request {
			// map a change from referenced configMap to ExampleCRDWithConfigMapRef, which causes its re-reconcile
			crList := &ExampleCRDWithConfigMapRefList{}
			if err := manager.GetClient().List(ctx, crList); err != nil {
				manager.GetLogger().Error(err, "while listing ExampleCRDWithConfigMapRefs")
				return nil
			}

			reqs := make([]ctrl.Request, 0, len(crList.Items))
			for _, item := range crList.Items {
				if item.ConfigMapRef.Name == cm.GetName() {
					reqs = append(reqs, ctrl.Request{
						NamespacedName: types.NamespacedName{
							Namespace: item.GetNamespace(),
							Name:      item.GetName(),
						},
					})
				}
			}

			return reqs
		})).
		Complete(reconcile.Func(func(ctx context.Context, r reconcile.Request) (reconcile.Result, error) {
			// Your business logic to implement the API by creating, updating, deleting objects goes here.
			return reconcile.Result{}, nil
		}))
	if err != nil {
		log.Error(err, "could not create controller")
		os.Exit(1)
	}

	if err := manager.Start(ctrl.SetupSignalHandler()); err != nil {
		log.Error(err, "could not start manager")
		os.Exit(1)
	}
}
source repo / download raw

LimitToNamespaces 用法

LimitToNamespaces 用法 ...

// https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.17.3/pkg/manager#example-New-LimitToNamespaces
package main

import (
	"os"

	"k8s.io/client-go/rest"
	"sigs.k8s.io/controller-runtime/pkg/cache"
	"sigs.k8s.io/controller-runtime/pkg/client/config"

	logf "sigs.k8s.io/controller-runtime/pkg/log"
	"sigs.k8s.io/controller-runtime/pkg/manager"
)

var

// NB: don't call SetLogger in init(), or else you'll mess up logging in the main suite.
log = logf.Log.WithName("manager-examples")

func main() {
	cfg, err := config.GetConfig()
	if err != nil {
		log.Error(err, "unable to get kubeconfig")
		os.Exit(1)
	}

	mgr, err := manager.New(cfg, manager.Options{
		NewCache: func(config *rest.Config, opts cache.Options) (cache.Cache, error) {
			opts.DefaultNamespaces = map[string]cache.Config{
				"namespace1": {},
				"namespace2": {},
			}
			return cache.New(config, opts)
		}},
	)
	if err != nil {
		log.Error(err, "unable to set up manager")
		os.Exit(1)
	}
	log.Info("created manager", "manager", mgr)
}
source repo / download raw

Builder-Metadata_only 用法

Builder-Metadata_only 用法 ...

// https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.17.3/pkg/builder#example-Builder-Metadata_only
package main

import (
	"context"
	"fmt"
	"os"

	appsv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"

	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"

	"sigs.k8s.io/controller-runtime/pkg/builder"
	"sigs.k8s.io/controller-runtime/pkg/client"
	"sigs.k8s.io/controller-runtime/pkg/client/config"

	logf "sigs.k8s.io/controller-runtime/pkg/log"
	"sigs.k8s.io/controller-runtime/pkg/log/zap"
	"sigs.k8s.io/controller-runtime/pkg/manager"
	"sigs.k8s.io/controller-runtime/pkg/manager/signals"
	"sigs.k8s.io/controller-runtime/pkg/reconcile"
)

func main() {
	logf.SetLogger(zap.New())

	log := logf.Log.WithName("builder-examples")

	mgr, err := manager.New(config.GetConfigOrDie(), manager.Options{})
	if err != nil {
		log.Error(err, "could not create manager")
		os.Exit(1)
	}

	cl := mgr.GetClient()

	err = builder.
		ControllerManagedBy(mgr).                  // Create the ControllerManagedBy
		For(&appsv1.ReplicaSet{}).                 // ReplicaSet is the Application API
		Owns(&corev1.Pod{}, builder.OnlyMetadata). // ReplicaSet owns Pods created by it, and caches them as metadata only
		Complete(reconcile.Func(func(ctx context.Context, req reconcile.Request) (reconcile.Result, error) {
			// Read the ReplicaSet
			rs := &appsv1.ReplicaSet{}
			err := cl.Get(ctx, req.NamespacedName, rs)
			if err != nil {
				return reconcile.Result{}, client.IgnoreNotFound(err)
			}

			// List the Pods matching the PodTemplate Labels, but only their metadata
			var podsMeta metav1.PartialObjectMetadataList
			err = cl.List(ctx, &podsMeta, client.InNamespace(req.Namespace), client.MatchingLabels(rs.Spec.Template.Labels))
			if err != nil {
				return reconcile.Result{}, client.IgnoreNotFound(err)
			}

			// Update the ReplicaSet
			rs.Labels["pod-count"] = fmt.Sprintf("%v", len(podsMeta.Items))
			err = cl.Update(ctx, rs)
			if err != nil {
				return reconcile.Result{}, err
			}

			return reconcile.Result{}, nil
		}))
	if err != nil {
		log.Error(err, "could not create controller")
		os.Exit(1)
	}

	if err := mgr.Start(signals.SetupSignalHandler()); err != nil {
		log.Error(err, "could not start manager")
		os.Exit(1)
	}
}
source repo / download raw

LeaderElection 用法

LeaderElection 用法 ...

// https://github.com/kubernetes-sigs/controller-runtime/blob/v0.17.3/example_test.go#L172
package main

import (
	"context"
	"fmt"
	"os"
	"time"

	appsv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"

	ctrl "sigs.k8s.io/controller-runtime"
	"sigs.k8s.io/controller-runtime/pkg/client"
)

func main() {
	log := ctrl.Log.WithName("builder-examples")
	leaseDuration := 100 * time.Second
	renewDeadline := 80 * time.Second
	retryPeriod := 20 * time.Second
	manager, err := ctrl.NewManager(
		ctrl.GetConfigOrDie(),
		ctrl.Options{
			LeaseDuration: &leaseDuration,
			RenewDeadline: &renewDeadline,
			RetryPeriod:   &retryPeriod,
		})
	if err != nil {
		log.Error(err, "could not create manager")
		os.Exit(1)
	}

	err = ctrl.
		NewControllerManagedBy(manager). // Create the Controller
		For(&appsv1.ReplicaSet{}).       // ReplicaSet is the Application API
		Owns(&corev1.Pod{}).             // ReplicaSet owns Pods created by it
		Complete(&ReplicaSetReconciler{Client: manager.GetClient()})
	if err != nil {
		log.Error(err, "could not create controller")
		os.Exit(1)
	}

	if err := manager.Start(ctrl.SetupSignalHandler()); err != nil {
		log.Error(err, "could not start manager")
		os.Exit(1)
	}
}

// ReplicaSetReconciler is a simple Controller example implementation.
type ReplicaSetReconciler struct {
	client.Client
}

// Implement the business logic:
// This function will be called when there is a change to a ReplicaSet or a Pod with an OwnerReference
// to a ReplicaSet.
//
// * Read the ReplicaSet
// * Read the Pods
// * Set a Label on the ReplicaSet with the Pod count.
func (a *ReplicaSetReconciler) Reconcile(ctx context.Context, req ctrl.Request) (ctrl.Result, error) {
	// Read the ReplicaSet
	rs := &appsv1.ReplicaSet{}
	err := a.Get(ctx, req.NamespacedName, rs)
	if err != nil {
		return ctrl.Result{}, err
	}

	// List the Pods matching the PodTemplate Labels
	pods := &corev1.PodList{}
	err = a.List(ctx, pods, client.InNamespace(req.Namespace), client.MatchingLabels(rs.Spec.Template.Labels))
	if err != nil {
		return ctrl.Result{}, err
	}

	// Update the ReplicaSet
	rs.Labels["pod-count"] = fmt.Sprintf("%v", len(pods.Items))
	err = a.Update(ctx, rs)
	if err != nil {
		return ctrl.Result{}, err
	}

	return ctrl.Result{}, nil
}
source repo / download raw

webhook 用法

webhook 用法 ...

// https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.17.3/pkg/builder#example-WebhookBuilder
package main

import (
	"os"

	"sigs.k8s.io/controller-runtime/pkg/builder"
	"sigs.k8s.io/controller-runtime/pkg/client/config"

	logf "sigs.k8s.io/controller-runtime/pkg/log"
	"sigs.k8s.io/controller-runtime/pkg/manager"
	"sigs.k8s.io/controller-runtime/pkg/manager/signals"

	examplegroup "sigs.k8s.io/controller-runtime/examples/crd/pkg"
)

func main() {
	var log = logf.Log.WithName("webhookbuilder-example")

	mgr, err := manager.New(config.GetConfigOrDie(), manager.Options{})
	if err != nil {
		log.Error(err, "could not create manager")
		os.Exit(1)
	}

	err = builder.
		WebhookManagedBy(mgr).         // Create the WebhookManagedBy
		For(&examplegroup.ChaosPod{}). // ChaosPod is a CRD.
		Complete()
	if err != nil {
		log.Error(err, "could not create webhook")
		os.Exit(1)
	}

	if err := mgr.Start(signals.SetupSignalHandler()); err != nil {
		log.Error(err, "could not start manager")
		os.Exit(1)
	}
}
source repo / download raw

k8s controller-runtime 介绍

介绍
